Geberit Alpha Concealed Cistern for 1200mm Hieight
Couldn't load pickup availability

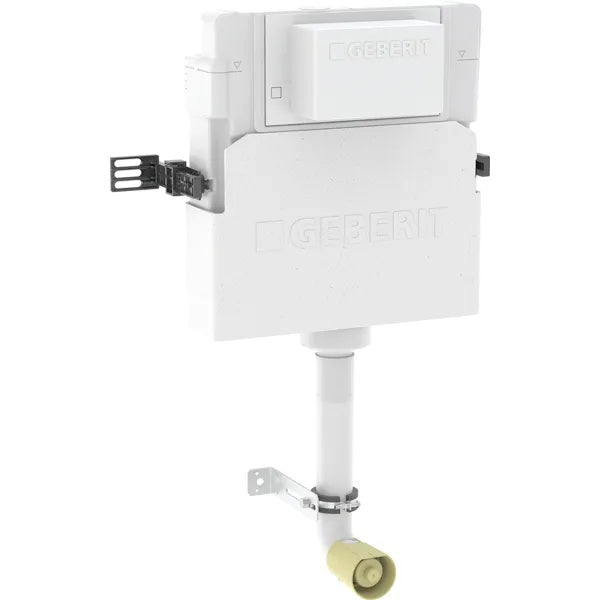

The Geberit Alpha Concealed Cistern for 1200mm Installation Height is a modern bathroom installation solution designed to provide a discreet flushing system for contemporary toilet spaces. Part of the Geberit Alpha collection, this rectangular cistern features a white plastic construction and concealed mounting to maintain a neat appearance around the WC. Measuring 740mm high and 440mm wide, it is intended for installations requiring a 1200mm installation height. Its design combines practical functionality with a streamlined bathroom finish, making it suitable for a range of toilet configurations. The cistern is backed by a 10-year guarantee and offers adjustable flush settings to accommodate different water-volume requirements.
Designed for masonry walls and part-height prewall installations, the Geberit Alpha cistern is suitable for floor-standing and wall-hung WCs. Its adjustable depth and top or front actuation provide flexibility during installation, while full insulation helps prevent condensation. The dual-flush mechanism is supplied with factory settings of 5.8 litres for a full flush and 3 litres for a reduced flush, with alternative settings available. The package includes an R 1/2-inch water supply connection with an integrated angle stop valve and hand wheel, plus fixing brackets, fastening materials, a flush bend extension, protection plug and service-opening protection box. The cistern complies with EN 14055, Class II requirements. Images are for illustration purposes only.
PRODUCT SPECIFICATION
- Product Type: Concealed Cistern
- Brand: Geberit
- Collection: Alpha
- Finish: White
- Height: 740mm
- Width: 440mm
- Installation Height: 1200mm
- Depth: 120mm
- Style: Modern
- Shape: Rectangular
- Mounting: Concealed
- Material: Plastic
- Guarantee: 10 Years
- Flow Pressure: 0.1–10 bar
- Maximum Water Temperature: 25°C
- Factory Flush Volume: 5.8 / 3 litres
- Full Flush Volume Adjustment Range: 4 / 4.5 / 6 / 7.5 litres
- Small Flush Volume Adjustment Range: 2–4 litres
- Flush Actuation: Top or front
- Water Supply Connection: R 1/2 inch
- Flush Bend Extension Diameter: 45mm
PRODUCT FEATURES
- Suitable for masonry walls and part-height prewall installations
- Compatible with floor-standing and wall-hung WCs
- Adjustable depth for installation flexibility
- Dual-flush operation with immediate post-flush possible using the factory setting
- Fully insulated against condensation
- Water supply connection compatible with MasterFix and MeplaFix
- Integrated angle stop valve and hand wheel
- Service-opening protection box can be cut to length to help protect against moisture and dirt
- Includes two fixing brackets and fastening material
- Includes flush bend extension, protection plug and service-opening protection box
- Includes Alpha01 square dual-flush plate in bright chrome, as indicated by the supplied component information
- Complies with EN 14055, Class II requirements
- Designed for easy installation and use
- Images are for illustration purposes only
