Geberit Alpha Toilet Frame & Concealed Cistern 1120mm Height

In stock
SKU: 458.039.00.2
£215.00 inc. VAT
-30% £306.00 £215.00 inc. VAT

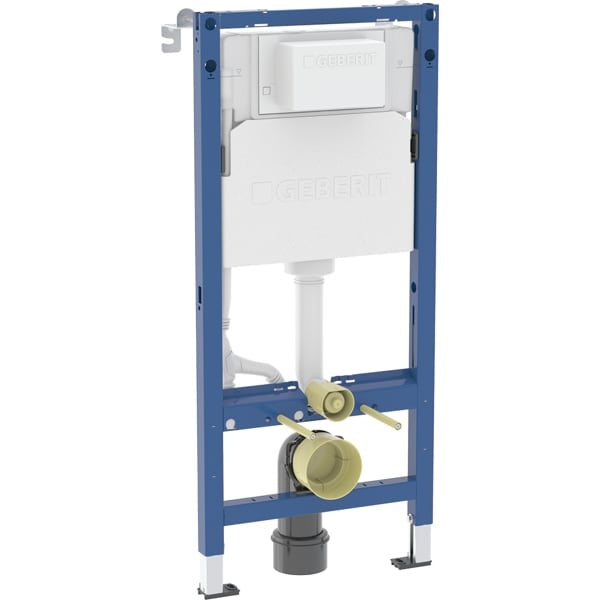

The Geberit Alpha Toilet Frame and Concealed Cistern 1120mm Height provides a dependable installation solution for wall-hung toilets in modern bathrooms. Part of the Geberit Alpha collection, this rectangular frame features a blue powder-coated steel construction, complemented by a blow-moulded plastic cistern and galvanised feet. Its design is suitable for both part-height and room-height installations, including drywall and partition wall constructions. Developed using Geberit's extensive experience in concealed cistern technology, this system combines a sturdy supporting structure with practical functionality. The concealed arrangement helps create a neat bathroom appearance, making it suitable for contemporary residential and commercial bathroom projects where a wall-hung WC installation is required.

The system incorporates dual-flush functionality, allowing users to select between two flush volumes, with additional adjustment options to suit installation requirements. Its single-piece, blow-moulded cistern is designed to prevent leaks and is fully insulated against condensation. The frame supports straightforward installation, with a tool-free connection bend and adjustable height. Maintenance access is available by removing the flush plate, while the service opening protection box can be cut to length to help protect against moisture and dirt. The system is compatible with Geberit Alpha flush plates and Geberit pneumatic flush buttons. It also includes connections and fixing components, along with provision for a Geberit AquaClean feed pipe and connection cable. Flush plate is not included.

PRODUCT SPECIFICATION
  • Product Type: Toilet Frame and Concealed Cistern
  • Brand: Geberit
  • Collection: Alpha
  • Finish: Blue

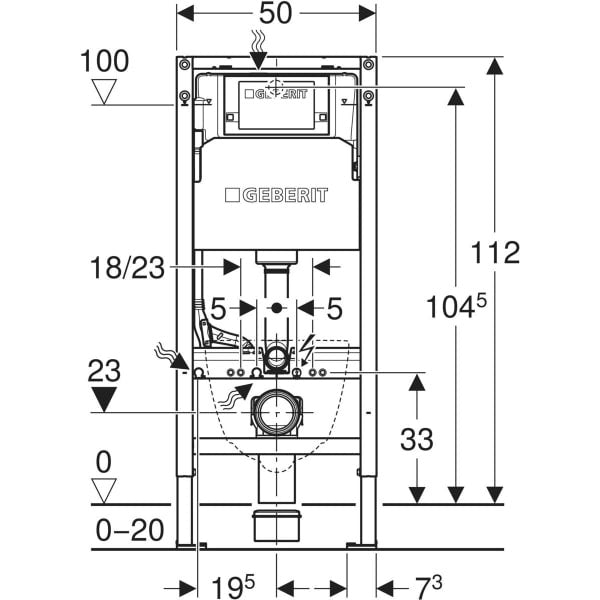

  • Height: 1120mm
  • Width: 500mm
  • Depth: 120mm
  • Shape: Rectangular
  • Material: Powder-coated steel, blow-moulded plastic and galvanised feet
  • Guarantee: 10 Years
  • Flow Pressure: 0.1–10 bar
  • Maximum Water Temperature: 25°C
  • Factory Flush Volume: 5.8/3 litres
  • Full Flush Volume Adjustment Range: 4/4.5/6/7.5 litres
  • Small Flush Volume Adjustment Range: 2–4 litres
  • Height Adjustable: Yes
  • WC Connection Dimensions: EN 33

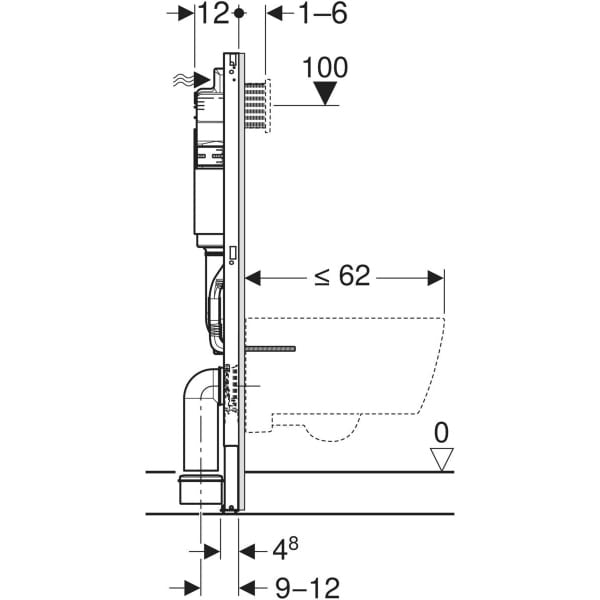

  • Maximum WC Projection: 62cm
  • Floor Construction Installation Range: 0–20cm
  • Cistern Depth: 12cm
  • Cistern Standard: EN 14055, Class II
  • Water Supply Connection: R 1/2 inch
  • Maximum Supported Load: Up to 400kg when used with compatible Geberit wall-hung pans
PRODUCT FEATURES
  • Designed for wall-hung WC installations in metal or timber frame walls, part-height or room-height prewalls, and room-height partition walls
  • Dual-flush operation with immediate post-flush possible at the factory setting
  • Single-piece blow-moulded cistern designed to prevent leaks
  • Frame protected against corrosion by powder coating, with galvanised leg supports
  • Statically self-supporting frame with alternative fastening points for wall anchors
  • Plastic foot plates designed to fit UW 50 profiles
  • Connection bend can be installed without tools
  • Water supply can be connected at the rear or top centre
  • Water supply unit compatible with Geberit MasterFix and MeplaFix systems, with integrated angle stop valve and adapter ring
  • Service opening protection box can be cut to length to protect against moisture and dirt
  • Conduit pipe provided for the Geberit AquaClean feed pipe and connection cable
  • Provision for electrical connection fastening
  • Compatible with Geberit Alpha flush plates and Geberit pneumatic flush buttons
  • Flush plate removal provides access to components for maintenance
  • Geberit offers a 25-year spare parts guarantee
  • Acoustic solutions designed for quiet operation
  • WRAS approved
  • Supplied with R 1/2 inch water supply connection unit, service opening protection box, 2 wall anchors, 2 fixing brackets, WC connection set, 90° PE-HD connection bend, PE-HD adapter socket and fastening and protection materials
  • Flush plate is not included
  • Images are for illustration purposes only

Download the Technical PDF here.
