Geberit Alpha Toilet Frame & Concealed Cistern 820mm Height

In stock
SKU: 458.033.00.2
£215.00 inc. VAT
-30% £306.00 £215.00 inc. VAT

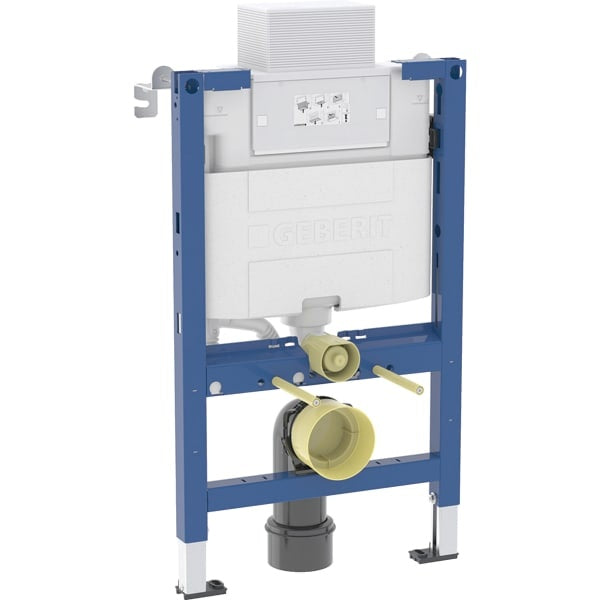

The Geberit Alpha Toilet Frame and Concealed Cistern is an 820mm-high installation system designed for wall-hung WCs, offering a practical space-saving solution for compact bathrooms, en-suites and part-height installations. Featuring a rectangular frame with a blue powder-coated finish, it combines a steel support structure, plastic components and galvanised feet for a durable installation arrangement. Its compact profile makes it suitable for challenging layouts, including spaces beneath windows, stairs or sloping ceilings. Part of the Geberit Alpha collection, this concealed cistern system supports a clean, uncluttered bathroom design by keeping the installation framework and flushing mechanism behind the finished wall. It is designed to work with compatible Geberit Alpha flush plates.

Designed for flexible installation, the frame supports top or front flush actuation and offers adjustable flushing volumes to suit installation requirements. The fully insulated cistern is manufactured as a single blow-moulded unit, while the frame is powder-coated for corrosion protection. It includes a conduit pipe for Geberit AquaClean shower toilets and a fastening option for an electrical connection. The system is suitable for metal or timber frame walls, part-height prewalls and floor constructions within the specified range. Supplied components include the water supply connection with integrated angle stop valve, wall anchors, fixing brackets, WC connection set, PE-HD connection bend and adapter socket, plus fastening and protection materials. Images are for illustration purposes only.

PRODUCT SPECIFICATION
  • Product Type: Toilet Frame and Concealed Cistern
  • Brand: Geberit
  • Collection: Alpha
  • Finish: Blue

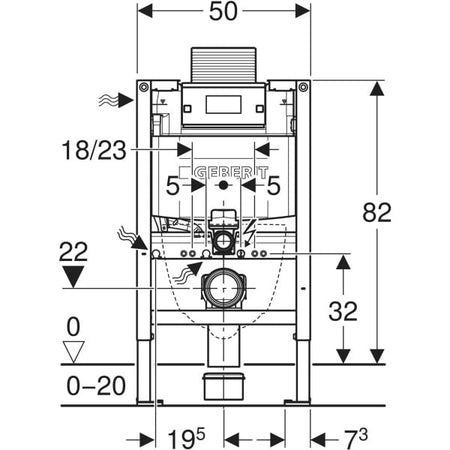

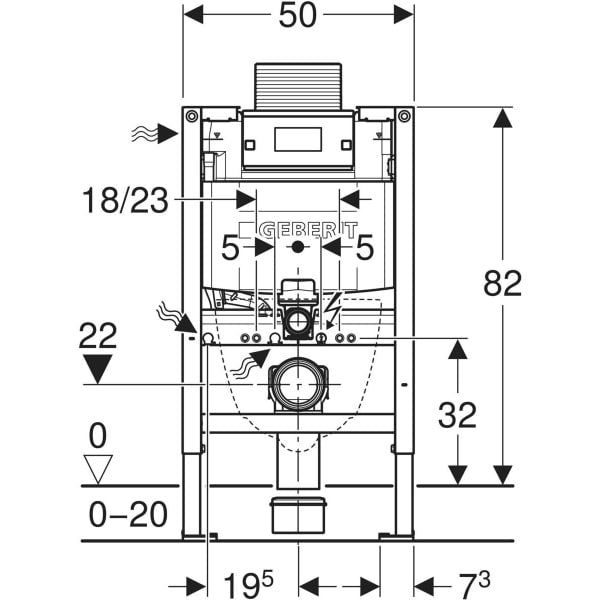

  • Height: 820mm
  • Width: 500mm
  • Depth: 140mm
  • Shape: Rectangular
  • Material: Powder-Coated Steel, Blow-Moulded Plastic and Galvanised Feet
  • Guarantee: 10 Years
  • Flow Pressure: 0.1–10 bar
  • Maximum Water Temperature: 25°C
  • Factory Flush Volume: 5.8 / 3 litres
  • Full Flush Volume Adjustment Range: 4 / 4.5 / 6 / 7.5 litres
  • Small Flush Volume Adjustment Range: 2–4 litres
  • Height Adjustable: Yes
  • WC Type: Wall-Hung

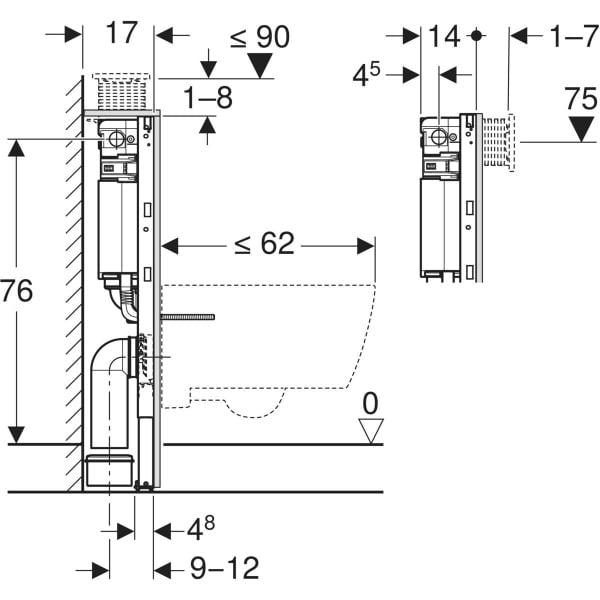

  • Maximum WC Projection: 62cm
  • Floor Construction Range: 0–20cm
  • Connection Bend Diameter: 90mm
  • Adapter Socket Diameter: 90 / 110mm
  • Water Supply Connection: R 1/2 inch
  • Cistern Standard: EN 14055, Class II
  • WC Connection Dimensions: In accordance with EN 33
PRODUCT FEATURES
  • Space-saving design for compact bathrooms, en-suites and part-height installations
  • Supports top or front flush actuation with dual-flush operation
  • Compatible with Geberit Alpha flush plates and Geberit pneumatic flush buttons
  • WRAS approved
  • Statically self-supporting frame suitable for metal and timber frame walls
  • Corrosion protection provided by the powder-coated frame and galvanised leg supports
  • Fully insulated cistern helps prevent condensation
  • Single-piece blow-moulded cistern construction designed to prevent leaks
  • Conduit pipe provided for Geberit AquaClean shower toilet feed pipe and connection cable
  • Fastening option provided for an electrical connection
  • Frame includes 9mm drilling holes for fastening in timber frame construction
  • Plastic foot plates are suitable for installation in UW 50 profiles
  • Connection bend can be mounted without tools
  • Water supply connection includes an integrated angle stop valve and hand wheel and is compatible with MasterFix and MeplaFix
  • Service-opening protection box can be cut to length to protect against moisture and dirt
  • Supplied with two wall anchors, two fixing brackets, WC connection set, 90-degree PE-HD connection bend, PE-HD adapter socket, fastening materials and protection materials
  • Immediate post-flush possible with the factory setting
  • Designed for straightforward installation and use
  • Images are for illustration purposes only
