Geberit Alpha Toilet Frame & Concealed Cistern for Wall Hung WC 980mm Height

In stock
SKU: 458.036.00.2
£215.00 inc. VAT
-30% £306.00 £215.00 inc. VAT

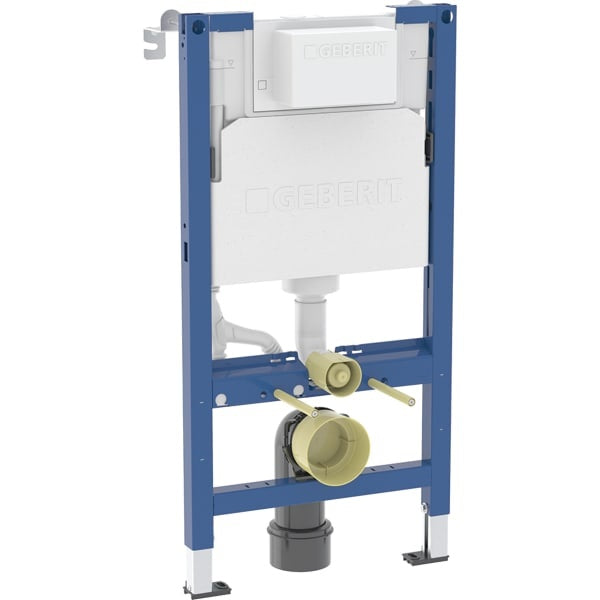

The Geberit Alpha Toilet Frame and Concealed Cistern for Wall Hung WC is a robust installation system designed for modern bathrooms requiring a concealed toilet solution. Part of the Geberit Alpha collection, it features a rectangular supporting frame with a blue powder-coated finish and a compact design suitable for installations beneath windows or within part-height drywall constructions. Manufactured using powder-coated steel, blow-moulded plastic and galvanised feet, the frame is designed to provide a durable, corrosion-protected structure. Its concealed cistern keeps the flushing mechanism discreetly positioned behind the wall, helping create a neat bathroom appearance. Developed using Geberit's extensive experience in concealed cistern technology, this system combines practical installation flexibility with reliable everyday functionality.

Designed for wall-hung WCs, the Geberit Alpha frame supports dual-flush operation, allowing users to select between two flush volumes. The cistern's single-piece construction helps prevent leaks, while its insulation protects against condensation. Maintenance is straightforward, as removing the flush plate provides access to internal components. The system is suitable for metal or timber frame walls, part-height prewalls and specified floor constructions. It includes a water supply connection unit, service-opening protection box, wall anchors, fixing brackets and WC connection components. A conduit pipe and electrical fastening provision allow connection arrangements for compatible Geberit AquaClean shower toilets. The frame is designed to support up to 400kg when used with Geberit wall-hung pans. Images are for illustration purposes only.

PRODUCT SPECIFICATION
  • Product Type: Toilet Frame and Concealed Cistern
  • Brand: Geberit
  • Collection: Alpha
  • Finish: Blue

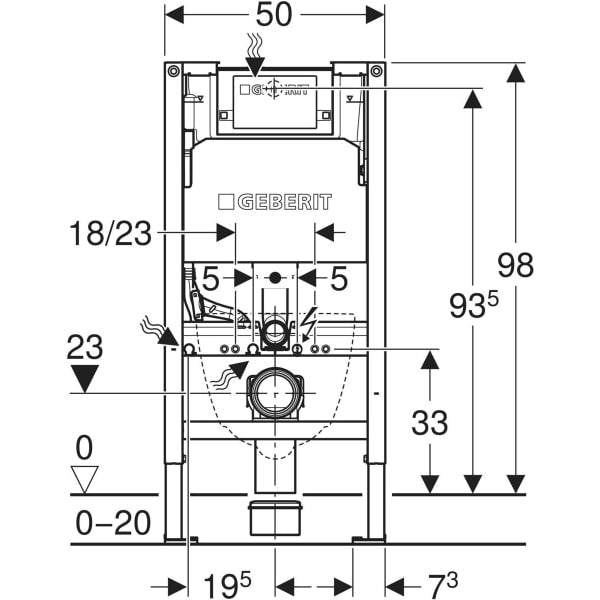

  • Height: 980mm
  • Width: 500mm
  • Depth: 120mm
  • Shape: Rectangular
  • Material: Powder-coated steel, blow-moulded plastic and galvanised feet
  • Guarantee: 10 Years
  • Flow Pressure: 0.1–10 bar
  • Maximum Water Temperature: 25°C
  • Factory Flush Volume: 5.8 / 3 litres
  • Full Flush Volume Adjustment Range: 4 / 4.5 / 6 / 7.5 litres
  • Small Flush Volume Adjustment Range: 2–4 litres
  • Height Adjustable: Yes
  • Maximum Load Capacity: 400kg when used with Geberit wall-hung pans

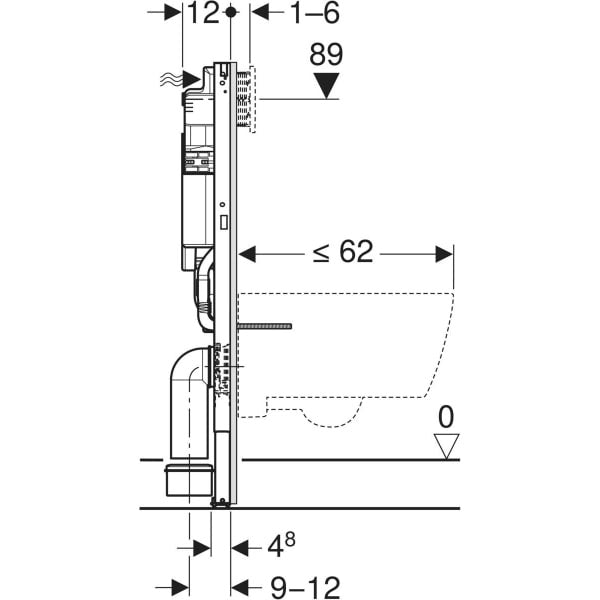

  • Maximum WC Projection: 62cm
  • WC Connection Dimensions: EN 33
  • Foot Plate Depth: Suitable for UW 50 profiles
  • Suitable Floor Construction Range: 0–20cm
  • Water Supply Connection: R 1/2 inch, rear or top centre
  • Connection Bend: 90° PE-HD, 90mm diameter
  • Adapter Socket: PE-HD, 90/110mm diameter
  • Concealed Cistern: 12cm, insulated against condensation
  • Cistern Standard: EN 14055, Class II
  • Range: 2025
PRODUCT FEATURES
  • Designed for wall-hung WCs
  • Suitable for metal and timber frame walls and part-height prewalls
  • Suitable for under-window and part-height drywall installations
  • Self-supporting frame with corrosion protection
  • Dual-flush operation with front actuation
  • Compatible with Geberit Alpha flush plates and Geberit pneumatic flush buttons
  • Single-piece, blow-moulded cistern construction designed to help prevent leaks
  • Flush plate removal provides access to internal components for maintenance
  • Geberit offers a 25-year spare parts guarantee
  • Acoustic solutions designed for quieter operation
  • Immediate post-flush operation possible with the factory setting
  • Includes a water supply connection unit with integrated angle stop valve and adapter ring
  • Water supply connection compatible with MasterFix and MeplaFix
  • Includes a service-opening protection box that can be cut to length to protect against moisture and dirt
  • Includes two wall anchors and two fixing brackets
  • Includes WC connection set, 90° connection bend and 90/110mm adapter socket
  • Includes fastening and protection materials
  • Connection bend can be installed without tools
  • Includes a conduit pipe for Geberit AquaClean shower toilet feed pipe and connection cable
  • Provides a fastening option for an electrical connection
  • WRAS approved
  • Easy to install and use
  • Images are for illustration purposes only
