Geberit Alpha Toilet Frame & Concealed Cistern with Square Chrome Flush Plate for Wall Hung WC 980mm Height

In stock
SKU: 458.037.21.2
£257.00 inc. VAT
-30% £366.00 £257.00 inc. VAT

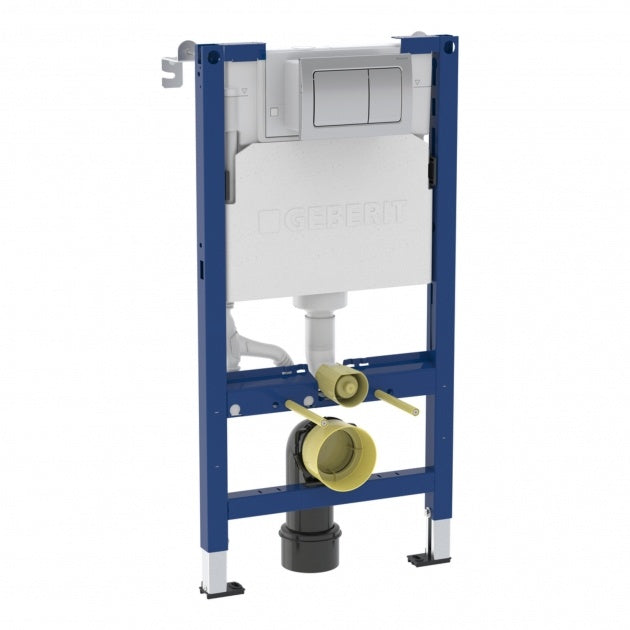

The Geberit Alpha Toilet Frame and Concealed Cistern with Square Chrome Flush Plate is a reliable installation solution for wall-hung WCs in contemporary bathrooms. Part of the Geberit Alpha collection, this rectangular frame features a blue powder-coated finish and a compact design suited to installations beneath windows or within part-height drywall constructions. It is manufactured from powder-coated steel, blow-moulded plastic and galvanised feet, with corrosion protection for the supporting structure. The concealed cistern keeps the flushing mechanism hidden behind the wall, helping create a clean, uncluttered bathroom appearance. The included square chrome flush plate provides a coordinated finishing detail, making this system suitable for a range of modern bathroom layouts.

Designed for flexible installation, the Geberit Alpha system supports wall-hung WCs and offers dual-flush operation through front actuation. The single-piece, blow-moulded cistern is designed to help prevent leaks and is insulated against condensation. Removing the flush plate provides access to internal components for maintenance, while the frame incorporates acoustic solutions for quieter operation. It is suitable for metal or timber frame walls, part-height prewalls and specified floor constructions. Supplied components include a water supply connection unit, service-opening protection box, wall anchors, fixing brackets and WC connection fittings. A conduit pipe and electrical fastening provision support compatible Geberit AquaClean shower toilet installations. The system is WRAS approved, and images are for illustration purposes only.

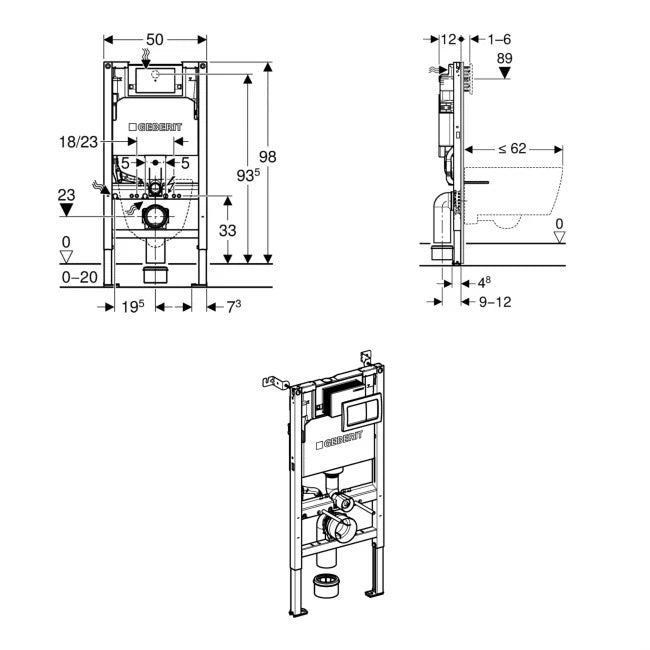

PRODUCT SPECIFICATION
  • Product Type: Toilet Frame and Concealed Cistern with Flush Plate
  • Brand: Geberit
  • Collection: Alpha
  • Finish: Blue frame with square chrome flush plate
  • Height: 980mm
  • Width: 500mm
  • Depth: 120mm
  • Shape: Rectangular
  • Material: Powder-coated steel, blow-moulded plastic and galvanised feet
  • Guarantee: 10 Years
  • Flow Pressure: 0.1–10 bar
  • Maximum Water Temperature: 25°C
  • Factory Flush Volume: 5.8 / 3 litres
  • Full Flush Volume Adjustment Range: 4 / 4.5 / 6 / 7.5 litres
  • Small Flush Volume Adjustment Range: 2–4 litres
  • Height Adjustable: Yes
  • Maximum Load Capacity: 400kg when used with Geberit wall-hung pans
  • Maximum WC Projection: 62cm
  • WC Connection Dimensions: EN 33
  • Foot Plate Depth: Suitable for UW 50 profiles
  • Suitable Floor Construction Range: 0–20cm
  • Water Supply Connection: R 1/2 inch, rear or top centre
  • WC Connection Bend: 90° PE-HD, 90mm diameter
  • Adapter Socket: PE-HD, 90/110mm diameter
  • Concealed Cistern: 12cm, insulated against condensation
  • Cistern Standard: EN 14055, Class II
  • Range: 2025
PRODUCT FEATURES
  • Square chrome flush plate included with the frame and cistern
  • Designed for wall-hung WCs
  • Suitable for metal and timber frame walls and part-height prewalls
  • Suitable for under-window and part-height drywall installations
  • Self-supporting frame with corrosion protection
  • Dual-flush operation with front actuation
  • Compatible with Geberit Alpha flush plates and Geberit pneumatic flush buttons
  • Flush plate removal provides access to internal components for maintenance
  • Geberit offers a 25-year spare parts guarantee
  • Acoustic solutions designed for quieter operation
  • Immediate post-flush operation possible with the factory setting
  • Includes a water supply connection unit with integrated angle stop valve and adapter ring
  • Water supply connection compatible with MasterFix and MeplaFix
  • Includes a service-opening protection box that can be cut to length to protect against moisture and dirt
  • Includes two wall anchors and two fixing brackets
  • Includes WC connection set, 90° connection bend and 90/110mm adapter socket
  • Includes fastening and protection materials
  • Connection bend can be installed without tools
  • Includes a conduit pipe for Geberit AquaClean shower toilet feed pipe and connection cable
  • Provides a fastening option for an electrical connection
  • WRAS approved
  • Easy to install and use
  • Images are for illustration purposes only
