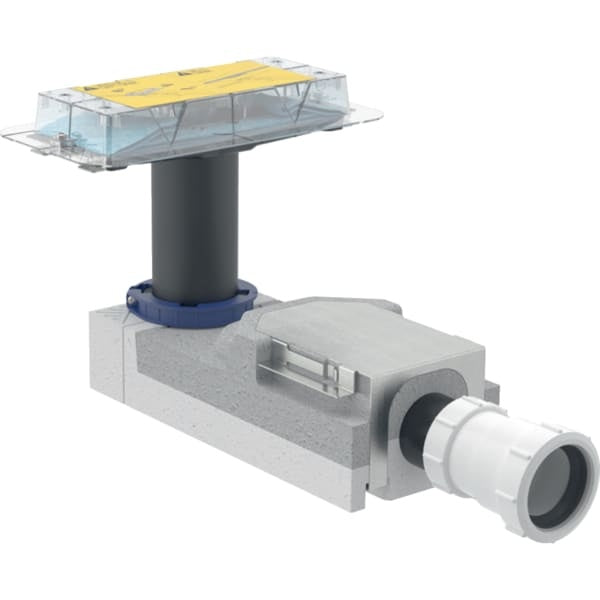

Geberit Cleanline Shower Channel Trap
Couldn't load pickup availability
The Geberit Cleanline Shower Channel Trap is designed to provide efficient wastewater drainage for compatible Geberit CleanLine shower channels in indoor bathroom installations. Finished in grey, this practical shower trap supports drainage beneath the shower area while accommodating floor constructions suited to its installation requirements. It is intended for use with composite sealing systems and can also serve as a floor drain with a horizontal outlet. Manufactured with a PE-HD trap and an EPS base unit, the assembly incorporates components designed to support installation and sound decoupling. Quality-monitored in accordance with EN 1253-3, the Geberit Cleanline Shower Channel Trap offers a dedicated drainage solution for compatible shower channel systems.
Designed to support a secure installation, the Geberit Cleanline Shower Channel Trap includes a premounted sealing fleece with a 10 cm circumferential section for connection to sealing systems, along with a thin-bed bonding flange. The EPS base unit provides sound decoupling and accommodates the trap, while the supplied protection box cover includes a reference line to assist installation. Additional components include an adaptor, fastening material and a distance plate. The trap is suitable for screed heights of at least 90 mm at the inlet and floor constructions between 90 and 200 mm. It is intended for indoor use with Geberit CleanLine shower channels. Images are for illustration purposes only.
PRODUCT SPECIFICATION
- Product Type: Shower Trap
- Brand: Geberit
- Collection: Cleanline
- Finish: Grey
- Guarantee: 1 Year
- Installation Location: Inside buildings
- Compatible Drainage Systems: Geberit CleanLine shower channels

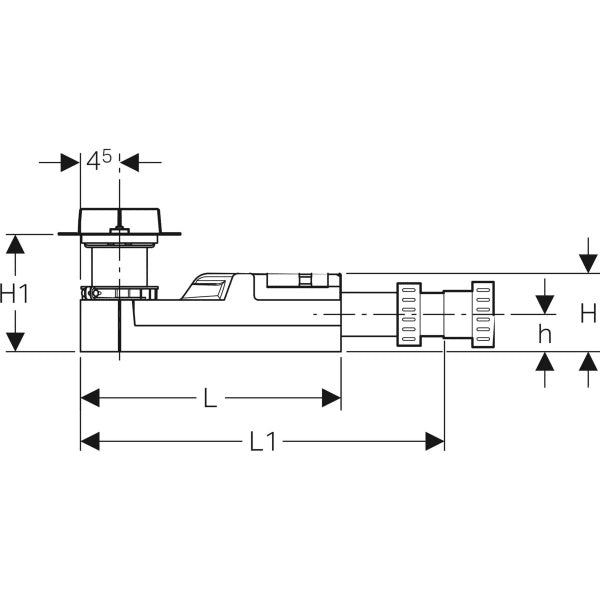

- Suitable Floor Construction Height: 90–200 mm
- Minimum Screed Height at Inlet: 90 mm
- Outlet Configuration: Horizontal
- Adaptor Size: Ø 50 mm to G 2" (Ø 55 mm)
- Quality Standard: EN 1253-3
PRODUCT FEATURES
- Suitable for composite sealing systems
- Premounted sealing fleece for connection to sealing systems, extending 10 cm around the perimeter
- Thin-bed bonding flange
- EPS base unit designed for sound decoupling and receiving the trap
- PE-HD trap construction
- Protection box cover with reference line
- Supplied with fastening material and a 2 cm-thick distance plate
- Easy to install and use
- Images are for illustration purposes only
