Geberit Inlet & Turn Handle Bath Waste With Ready To Fit Set And Straight Connector 760mm

In stock
SKU: 150.713.21.6
£224.00 inc. VAT
-30% £319.00 £224.00 inc. VAT

The Geberit Inlet and Turn Handle Bath Waste with Ready-to-Fit Set and Straight Connector is a modern chrome-finished bath waste and overflow system designed for large or custom-size bathtubs. Its integrated inlet fills the bath through the overflow, creating a streamlined appearance without requiring a separate bath-filling outlet. The system combines a rotary turn handle, matching chrome actuator rosette and waste plug to provide convenient control over bath drainage. Suitable for steel, plastic and cast-iron bathtubs with a compatible waste opening, this Geberit bath waste offers an integrated solution for filling, draining and overflow management. Its adjustable configuration accommodates a wider range of bath sizes.

Supplied as a complete ready-to-fit set, the system includes an overflow head with integrated inlet, waste outlet, trap, chrome actuator rosette, waste plug, 90-degree elbow tap connector with MasterFix connection, PE-HD connector, protection box and fastening materials. The rotary handle allows the waste plug to be operated from inside the bath, while the integrated trap provides odour protection. An adjustable inlet jet and extendible overflow mount help accommodate installation requirements. Double-sided seals on the drain and overflow help resist leakage. Quality-monitored in accordance with EN 274-3, the system offers low-noise operation under the specified test conditions. Check bath dimensions and the waste opening before installation. Images are for illustration purposes only.

PRODUCT SPECIFICATION
  • Product Type: Bath Waste
  • Brand: Geberit
  • Finish: Chrome

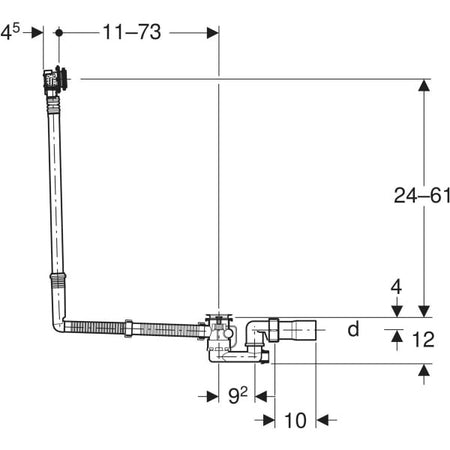

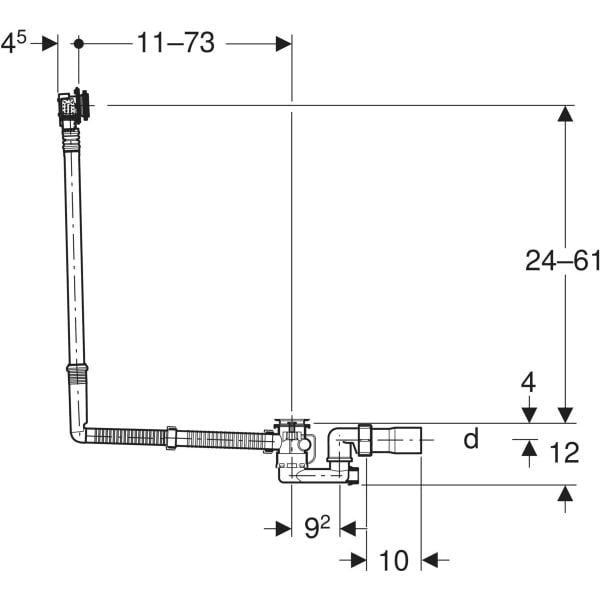

  • Height: 240–610mm
  • Width: 52mm
  • Depth: 110–730mm
  • Length: 730mm
  • Style: Modern
  • Guarantee: 2 Years
  • Required Bath Waste Valve Hole Diameter: 52mm
  • Outlet Diameter: 40mm / 50mm
  • Connector Diameter: 43mm
  • Connector Material: PE-HD
  • Water Seal Depth: 50mm
  • Inlet Capacity at 3 Bar: 0.35 l/s
  • Overflow Discharge Rate: 0.6 l/s
  • Appliance Sound Pressure Level at 3 Bar: 15 dB(A)
  • Sound Class: 1
  • Standard: Quality-monitored in accordance with EN 274-3
PRODUCT FEATURES
  • Integrated bath inlet and overflow system fills the bath through the overflow
  • Suitable for large or custom-size steel, plastic and cast-iron bathtubs
  • Rotary turn handle operates the waste plug from inside the bath
  • Includes overflow head with integrated inlet, waste outlet, chrome actuator rosette, chrome waste plug and trap
  • Supplied with a 90-degree elbow tap connector featuring MasterFix, 1/2-inch radial-sealing connection
  • Includes a straight PE-HD connector, protection box and fastening materials
  • Adjustable inlet jet for alignment during installation
  • Extendible overflow head mount can be fastened in position
  • Double-sided seals on the drain and overflow help resist leakage
  • Integrated trap provides odour protection
  • Designed for straightforward installation and use
  • Images are for illustration purposes only

Download the Technical PDF here.
