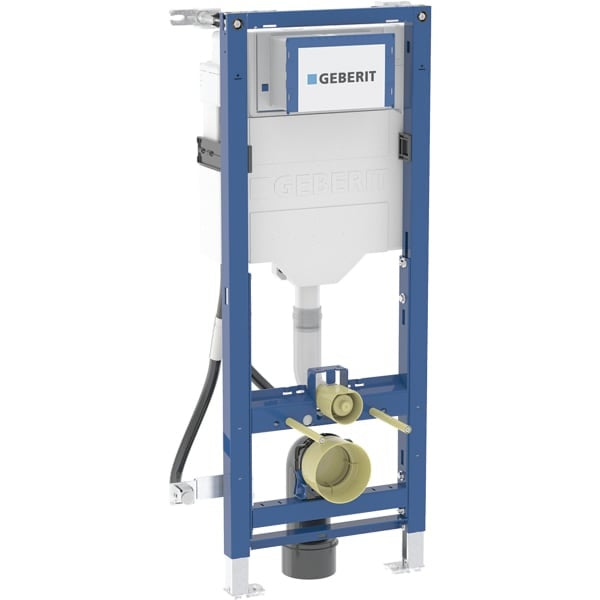

Geberit Less-Abled Toilet Frame & Cistern 1120mm Height

In stock
SKU: 111.352.00.6
£505.00 inc. VAT
-30% £721.00 £505.00 inc. VAT

The Geberit Less-Abled Toilet Frame and Cistern is a modern, concealed installation solution designed to support accessible bathroom environments in private homes, care homes, hospitals and commercial premises. With a reduced-width, self-supporting frame, it allows space for support rails or grab handles alongside a wall-hung WC. The robust construction combines corrosion-resistant, powder-coated steel with galvanised leg supports and a fully insulated concealed cistern. Its design accommodates wall-hung toilet pans with an extended projection, making it suitable for accessibility-focused installations where strength, comfort and practical positioning are essential. The streamlined concealed arrangement also helps maintain a clean, uncluttered bathroom appearance while supporting flexible installation planning.

Designed with accessibility and convenient maintenance in mind, the Geberit Duofix frame allows the WC installation height to be adjusted during fitting to suit individual requirements. The cistern supports front-operated single, dual or stop-and-go flushing, with adjustable flush volumes to accommodate different water-use preferences. Tool-free installation of the connection bend and access to the cistern through the flush plate simplify fitting and servicing. Electrical connection provisions and a conduit support compatible Geberit AquaClean shower toilets and other compatible electrical upgrades. The package includes the water supply connection with angle stop valve, WC connection set, connection bend, adaptor socket, protection box, threaded rods and fastening materials. Compatible flush plates and additional accessories should be selected separately where required.

PRODUCT SPECIFICATION
  • Product Type: Wall-Hung Toilet Frame and Cistern
  • Brand: Geberit
  • Range: Duofix
  • Range Year: 2025
  • Height: 1120mm
  • Width: 425mm
  • Depth: 170mm
  • Style: Modern
  • Shape: Rectangular
  • Mounting: Concealed
  • Material: Powder-Coated Steel, Single Blow-Moulded Plastic and Galvanised Feet
  • Guarantee: 10 Years
  • Cistern Type: Sigma Concealed Cistern
  • Cistern Size: 12cm
  • Flush Actuation: Front
  • Flush Compatibility: Single Flush, Dual Flush and Stop-and-Go Flush
  • Factory Flush Volume: 5.8L Full Flush / 3L Reduced Flush
  • Full Flush Volume Adjustment: 4L, 4.5L, 6L or 7.5L
  • Reduced Flush Volume Adjustment: 2–4L
  • Flow Pressure: 0.1–10 bar
  • Maximum Water Temperature: 25°C
  • WC Installation Height Adjustment: 410–460mm
  • Maximum WC Projection: 750mm
  • Compatible Floor Construction Height: 0–25cm
  • Water Supply Connection: R 1/2 inch, rear or top centre
  • WC Connection Diameter: 90mm
  • Adaptor Socket Diameter: 90/110mm
  • Connection Bend Adjustment Range: 45mm
  • Maximum Load Capacity: Up to 400kg when combined with compatible Geberit wall-hung pans, as stated in the source
  • Standard Compliance: EN 14055, Class II
  • Certification: WRAS Approved
  • WC Connection Standard: EN 33
PRODUCT FEATURES
  • Reduced-width frame designed to accommodate support handles or grab rails alongside the WC
  • Suitable for accessible bathroom installations for users with mobility requirements
  • Statically self-supporting construction with corrosion-resistant protection
  • Pull-out plate for lateral fastening to metal or timber profiles or Geberit Duofix system studs
  • Compatible with metal and timber frame walls, Geberit Duofix system walls, part-height or room-height prewalls, and room-height partition walls
  • Rotating foot plates suitable for UW 50 and UW 75 U-profiles
  • Foot plates can be mounted on Geberit Duofix system rails without tools or additional components
  • Galvanised non-slip leg supports protected against corrosion
  • Connection bend can be installed without tools at different depths
  • Cistern fully insulated against condensation
  • Tool-free installation and maintenance access through the flush plate opening
  • Protection box can be cut to length to help protect the service opening from moisture and dirt
  • Conduit pipe provided for compatible Geberit AquaClean shower toilet feed pipe or electrical connection cable
  • Provision for electrical connection and Power & Connect Box
  • Water supply connection includes an integrated angle stop valve and hand wheel
  • Compatible with MasterFix and MeplaFix connection systems
  • Components in contact with drinking water are lead-free
  • Supplied with water supply connection, WC connection set, 90-degree PE-HD connection bend and 90/110mm PE-HD adaptor socket
  • Supplied with service-opening protection box, two protection plugs, two M12 threaded rods and fastening materials
  • Compatible with Geberit Sigma flush plates and Geberit pneumatic flush buttons; flush controls are not listed as included
  • Supports compatible Geberit AquaClean shower toilets and Geberit DuoFresh systems; check individual product compatibility before installation
  • Images are for illustration purposes only

Download the Technical PDF here.
