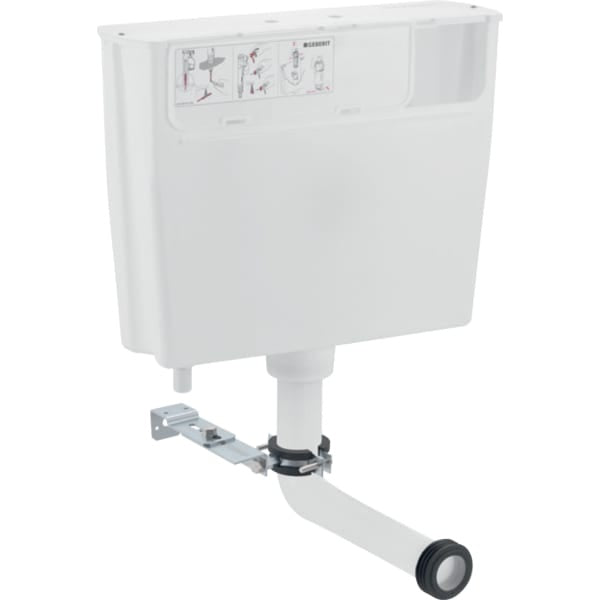

Geberit Low-Height Pneumatic Flush Concealed Cistern
Couldn't load pickup availability
The Geberit Low-Height Pneumatic Flush Concealed Cistern is designed for discreet installation within modern bathroom furniture or part-height pre-wall structures. Its compact, rectangular design helps maintain a neat, minimalist appearance while providing a practical flushing solution for compatible floor-standing and back-to-wall WCs. Manufactured from plastic, this white concealed cistern offers a space-conscious option for bathroom layouts where installation height is limited. The Geberit Furniture Cistern combines a streamlined design with pneumatic dual-flush functionality, making it suitable for contemporary bathroom projects. Its concealed mounting arrangement keeps the cistern out of sight, helping create a clean and uncluttered finish around the toilet area.
Designed for low-level installation, this Geberit cistern supports drywall construction and integration into bathroom furniture or part-height pre-wall installations. Pneumatic flush actuation allows operation with compatible Geberit pneumatic flush buttons, which are sold separately. The factory-set flush volume is 5.8 litres, with an included reduction cup allowing adjustment to 4.0 or 2.6 litres. The bottom-left water supply connection features a ½-inch thread, while the flush pipe connection uses a compression joint. The package includes a 90-degree flush bend, its fastening bracket, the flush-volume reduction cup and fastening materials. The cistern meets EN 14055 Class II requirements but is not suitable for Geberit AquaClean Alba or Sela.
PRODUCT SPECIFICATION
- Product Type: Concealed Cistern
- Brand: Geberit
- Range: Furniture Cistern
- Finish: White
- Material: Plastic
- Style: Modern
- Shape: Rectangular
- Mounting: Concealed

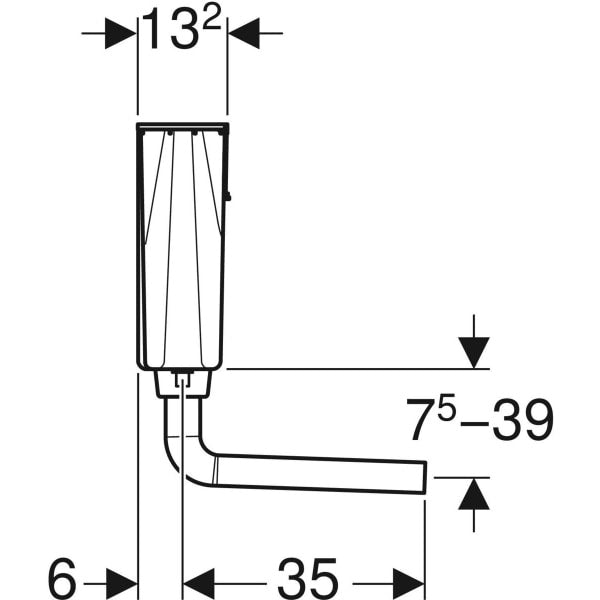

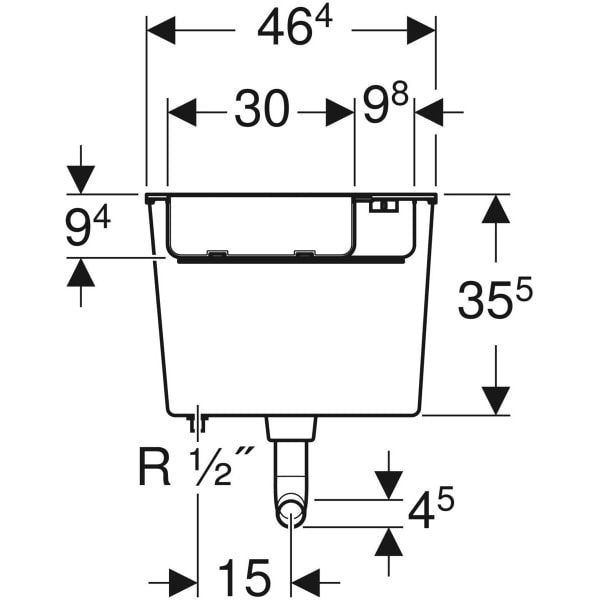

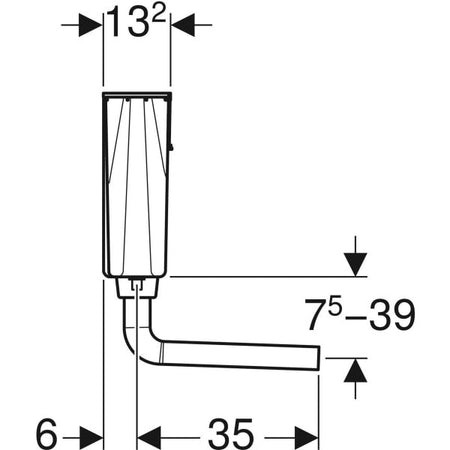

- Height: 355mm
- Width: 464mm
- Depth: 132mm
- Guarantee: 10 Years
- Flush Type: Pneumatic Dual-Flush
- Factory-Set Flush Volume: 5.8 litres
- Adjustable Flush Volumes: 4.0 / 2.6 litres
- Flow Pressure: 0.1–10 bar
- Maximum Water Temperature: 25°C
- Water Supply Connection: ½-inch thread
- Water Supply Position: Bottom left
- Flush Pipe Connection: Compression joint
- Applicable Standard: EN 14055, Class II
PRODUCT FEATURES
- Low-height design for bathroom furniture and part-height pre-wall installations
- Suitable for drywall construction and low-level installation
- Designed for floor-standing and back-to-wall WCs
- Compatible with Geberit pneumatic flush buttons, including Type 10 or Type 01 buttons
- Flush button and operating handle are not included
- Not suitable for Geberit AquaClean Alba or Sela
- Includes a 90-degree flush bend
- Includes flush-bend fastening bracket
- Includes flush-volume reduction cup
- Fastening materials included
- Images are for illustration purposes only
