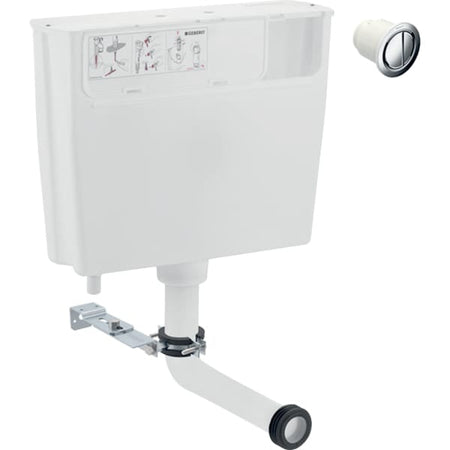

Geberit Low-Height Pneumatic Flush Concealed Cistern with Typ01 Chrome Flush Button

The Geberit Low-Height Pneumatic Flush Concealed Cistern with Type 01 Chrome Flush Button provides a practical flushing solution for contemporary bathroom installations. Designed for discreet integration into bathroom furniture or part-height pre-wall structures, this compact concealed cistern helps maintain a clean, minimalist appearance around the toilet. Its rectangular design and white plastic construction suit modern bathroom interiors, while the low-height configuration makes it suitable for installations where space is limited. The set combines the Geberit Furniture Cistern with a Type 01 chrome flush button, providing a coordinated flushing arrangement for compatible WC installations. It is designed for floor-standing and back-to-wall toilets.

The cistern uses pneumatic dual-flush actuation and has a factory-set flush volume of 5.8 litres, with an included reduction cup allowing adjustment to 4.0 or 2.6 litres. Installation is suitable for drywall construction, bathroom furniture and part-height pre-wall applications. The bottom-left water supply connection has a ½-inch thread, and the flush pipe connection features a compression joint. The package includes a 90-degree flush bend, its fastening bracket, the flush-volume reduction cup and fastening materials, alongside the Type 01 chrome flush button. The cistern meets EN 14055 Class II requirements. It is not suitable for Geberit AquaClean Alba or Sela models. The cistern has a 10-year guarantee, while the flush button has a 5-year guarantee.

PRODUCT SPECIFICATION

• Product Type: Concealed Cistern with Flush Button
• Brand: Geberit
• Range: Furniture Cistern
• Finish: White cistern with chrome flush button
• Material: Plastic
• Style: Modern
• Shape: Rectangular
• Mounting: Concealed

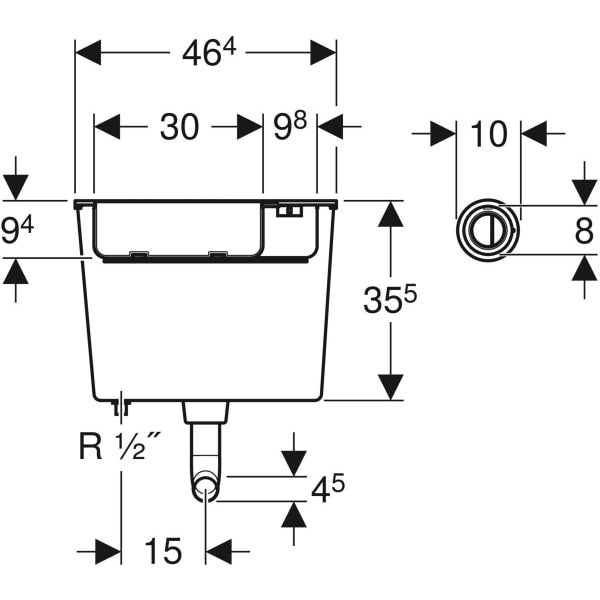

• Height: 355mm
• Width: 464mm
• Depth: 132mm
• Cistern Guarantee: 10 Years
• Flush Button Guarantee: 5 Years
• Flush Type: Pneumatic Dual-Flush
• Factory-Set Flush Volume: 5.8 litres
• Adjustable Flush Volumes: 4.0 / 2.6 litres
• Flow Pressure: 0.1–10 bar
• Maximum Water Temperature: 25°C
• Water Supply Connection: ½-inch thread
• Water Supply Position: Bottom left
• Flush Pipe Connection: Compression joint
• Applicable Standard: EN 14055, Class II
• Flush Button Type: Type 01
• Flush Button Finish: Chrome

PRODUCT FEATURES

• Low-height design for bathroom furniture and part-height pre-wall installations
• Suitable for drywall construction and low-level installation
• Designed for floor-standing and back-to-wall WCs
• Type 01 chrome flush button included
• Includes a 90-degree flush bend
• Includes flush-bend fastening bracket
• Includes flush-volume reduction cup
• Fastening materials included
• Not suitable for Geberit AquaClean Alba or Sela
• Images are for illustration purposes only

Download the Technical PDF here.
