Geberit Omega Low Height Toilet Frame & Cistern for Wall-Hung WC for 790mm Height
Couldn't load pickup availability

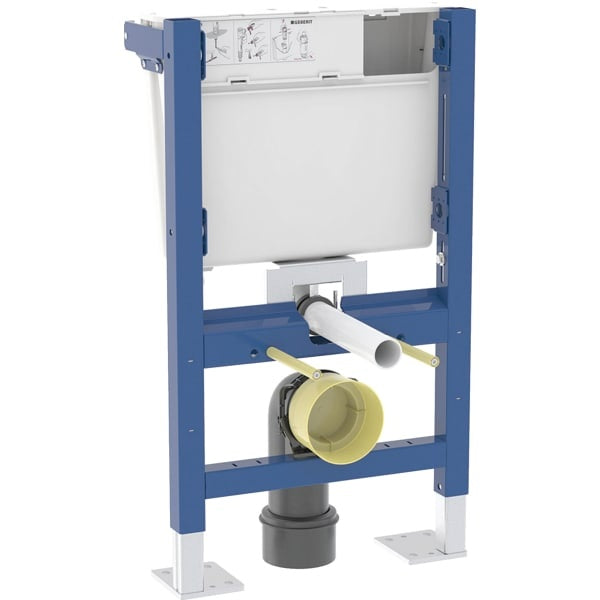

The Geberit Omega Low Height Toilet Frame and Cistern is a modern concealed installation solution designed for wall-hung WCs in compact bathrooms, bathroom furniture and part-height prewalls. Part of the Geberit Omega collection, this space-conscious frame measures 790mm high, 465mm wide and 195mm deep, with an adjustable depth to accommodate different installation requirements. Its self-supporting construction combines a corrosion-resistant, powder-coated steel frame with galvanised leg supports and PE-HD connection components. The rectangular design helps create a clean, minimalist bathroom appearance, leaving the WC pan and flush plate visible once installed. Its low-height configuration makes it particularly suitable for furniture installations and bathrooms with restricted vertical space.
Featuring a concealed dual-flush cistern with pneumatic actuation, this Geberit toilet frame offers adjustable flush volumes to help manage water consumption. It is suitable for metal and timber frame walls, bathroom furniture and part-height prewalls, with installation options for compatible floor constructions. The connection bend can be fitted without tools, while the bottom-left water supply connection supports convenient plumbing arrangements. Large foot plates accommodate raised power supplies within floors. The package includes a 90-degree PE-HD connection bend, an adaptor socket, a flush-volume reduction cup and fastening and protection materials. Compatible Geberit pneumatic Type 01 and Type 10 flush buttons can be selected separately. This model is not suitable for Geberit AquaClean Alba or Sela shower toilets.
PRODUCT SPECIFICATION
- Product Type: Wall-Hung Toilet Frame and Cistern
- Brand: Geberit
- Collection: Omega
- Range: 2025

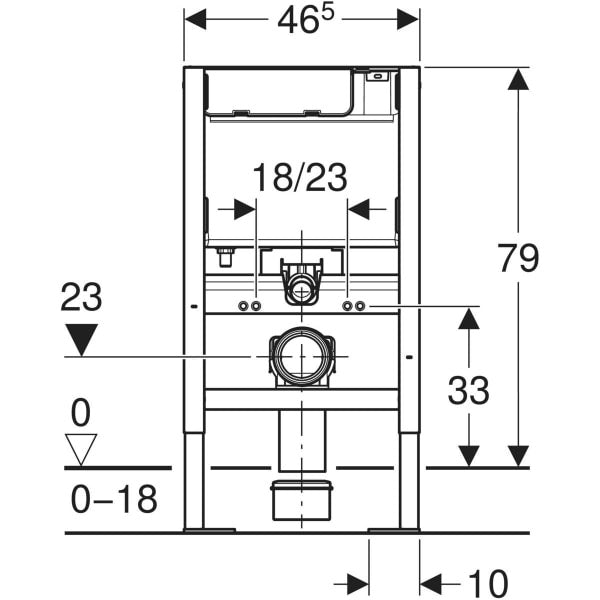

- Height: 790mm
- Width: 465mm

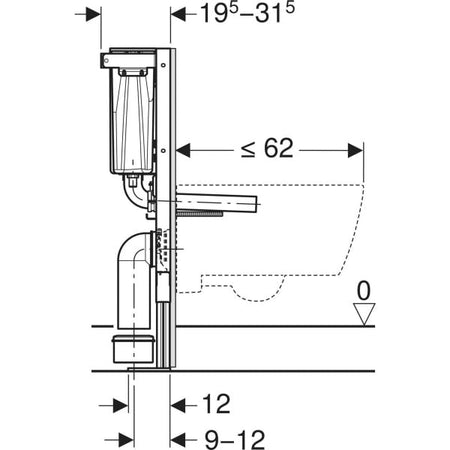

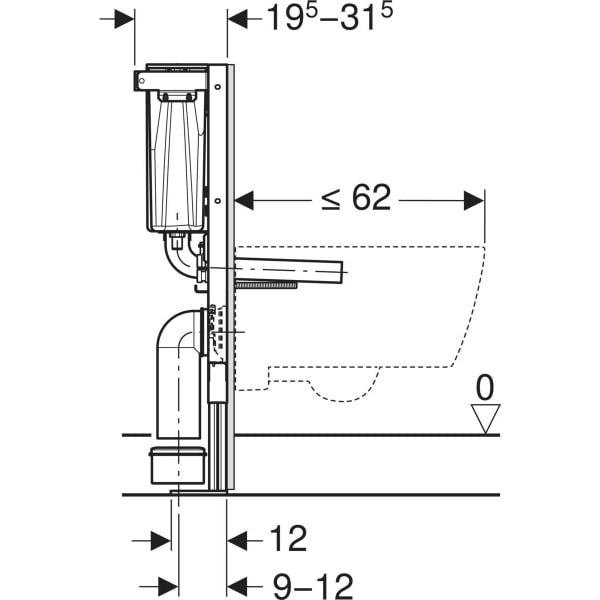

- Depth: 195–315mm, adjustable
- Style: Modern
- Shape: Rectangular
- Mounting: Concealed
- Material: Powder-Coated Steel, Single Blow-Moulded Plastic and Galvanised Feet
- Guarantee: 10 Years
- Factory Flush Volume: 5.8L Full Flush / 3L Reduced Flush
- Adjustable Flush Volume: 4.0L Full Flush / 2.6L Reduced Flush
- Flush Type: Dual Flush
- Flush Actuation: Pneumatic
- Flow Pressure: 0.1–10 bar
- Maximum Water Temperature: 25°C
- Water Supply Connection: 1/2 inch, Bottom Left
- WC Projection Compatibility: Up to 62cm
- WC Connection Standard: EN 33
- Compatible Floor Construction Height: 0–18cm
- Connection Bend Diameter: 90mm
- Adaptor Socket Diameter: 90/110mm
PRODUCT FEATURES
- Statically self-supporting frame with corrosion-resistant protective coating
- Designed for installation within bathroom furniture and part-height prewalls
- Suitable for metal and timber frame wall constructions
- Low-installation-height cistern for compact bathrooms and low-ceiling spaces
- Galvanised leg supports with corrosion protection
- Large foot plates designed to accommodate raised power supplies in floors
- Connection bend can be installed without tools
- Flush pipe connection uses a compression joint
- Compatible with Geberit pneumatic Type 01 and Type 10 flush buttons; buttons are not listed as included
- Supplied with a 90-degree PE-HD connection bend
- Supplied with a PE-HD adaptor socket
- Supplied with a flush-volume reduction cup
- Fastening and protection materials included
- Not suitable for Geberit AquaClean Alba or Geberit AquaClean Sela
- Images are for illustration purposes only
