Geberit Omega Toilet Frame & Cistern for Wall-Hung WC for 820mm Height

In stock
SKU: 111.004.00.4
£406.00 inc. VAT
-30% £579.00 £406.00 inc. VAT

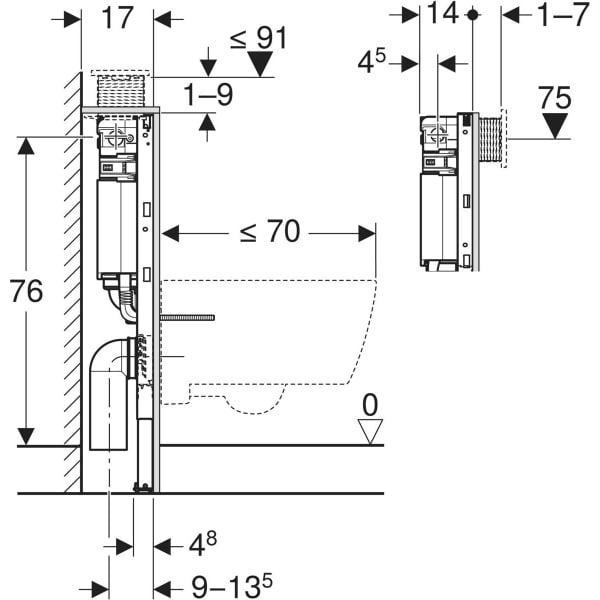

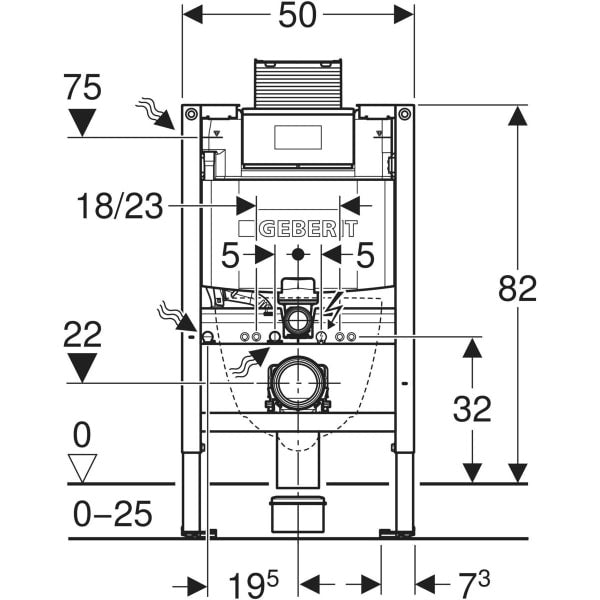

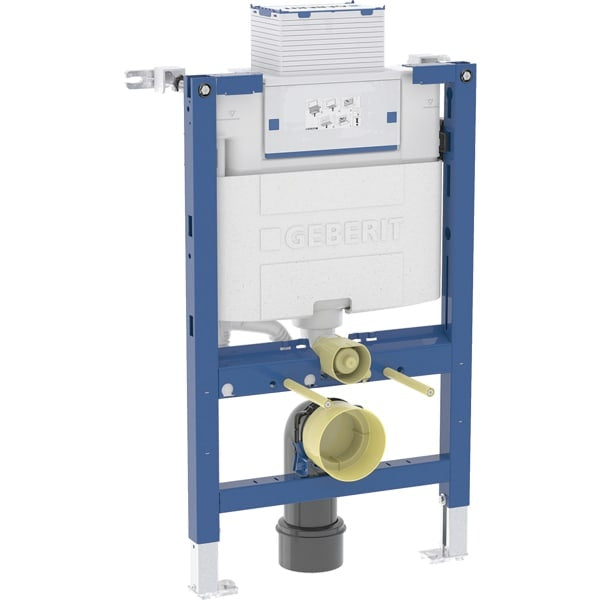

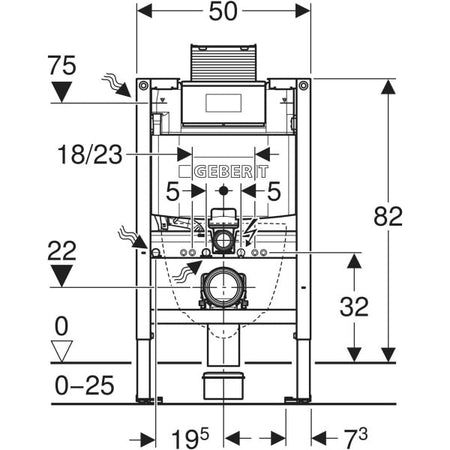

The Geberit Omega Toilet Frame and Cistern for Wall-Hung WC is a modern, space-saving solution designed for contemporary bathroom installations where vertical space is limited. Part of the Geberit Omega collection, this concealed toilet frame measures 820mm high, 500mm wide and 170mm deep, making it suitable for compact bathrooms, ensuites and guest toilets. Its rectangular frame combines powder-coated steel construction with a robust, self-supporting design, galvanised feet and a fully insulated concealed cistern. The compact configuration provides greater flexibility when planning bathroom layouts, including installations beneath windows, sloping ceilings and staircases, while supporting a clean, minimalist appearance around a wall-hung toilet.

Designed for flexible installation, the Geberit Omega frame supports top or front dual-flush actuation and offers adjustable flush volumes to suit different requirements. The water supply connection is positioned on the left or rear left, while the adjustable connection bend can be fitted at different depths without tools. Height-adjustable feet and rotating foot plates support installation across compatible metal or timber frame walls, Geberit Duofix system walls and part-height prewalls. The integrated protection box helps protect the service opening from moisture and dirt and can be trimmed to length. A conduit pipe supports compatible Geberit AquaClean shower toilet connections. The package includes the cistern connection components, wall anchors, fixings and WC connection fittings. Flush plates are not specified as included and should be selected separately.

PRODUCT SPECIFICATION
  • Product Type: Wall-Hung Toilet Frame and Cistern
  • Brand: Geberit
  • Collection: Omega
  • Range: 2025
  • Height: 820mm
  • Width: 500mm
  • Depth: 170mm
  • Style: Modern
  • Shape: Rectangular
  • Mounting: Concealed
  • Material: Powder-Coated Steel, Single Blow-Moulded Plastic and Galvanised Feet
  • Guarantee: 10 Years
  • Cistern Capacity: 12cm Omega Concealed Cistern
  • Flush Type: Dual Flush
  • Flush Actuation: Top or Front
  • Factory Flush Volume: 5.8L Full Flush / 3L Reduced Flush
  • Full Flush Volume Adjustment: 4L, 4.5L, 6L or 7.5L
  • Reduced Flush Volume Adjustment: 2–4L
  • Operating Pressure: 0.1–10 bar
  • Minimum Flow Pressure: 0.1 bar
  • Flow Rate at 300kPa / 3 bar: 0.16L/s
  • Calculated Flow Rate: 0.09L/s
  • Maximum Water Temperature: 25°C
  • Water Supply Connection: R 1/2 inch, Left or Rear Left
  • Connection Bend Adjustment Range: 45mm
  • WC Connection Diameter: 90mm
  • Adaptor Connection Diameter: 90/110mm
  • Frame Projection Compatibility: Up to 70cm
  • Floor Construction Compatibility: 0–25cm
  • Standard Compliance: EN 14055, Class II
  • Drinking Water Contact Components: Lead-Free
PRODUCT FEATURES
  • Statically self-supporting frame with corrosion-resistant powder coating
  • Galvanised, non-slip leg supports protected against corrosion
  • Height-adjustable feet and rotating foot plates
  • Compatible with metal and timber frame walls, Geberit Duofix system walls and part-height prewalls
  • Suitable for wall-hung WCs with connection dimensions in accordance with EN 33
  • Foot plates suitable for UW 50 and UW 75 U-profiles
  • Foot plates can be mounted on Geberit Duofix system rails without tools or additional components
  • Connection bend can be installed at different depths without tools
  • Cistern fully insulated against condensation
  • Tool-free access for cistern installation, maintenance and servicing
  • Immediate post-flush possible with factory settings
  • Integrated protection box for the service opening, trimmable to length
  • Conduit pipe provided for compatible Geberit AquaClean shower toilet feed pipe and connection cable
  • Fastening provision for electrical connection and Power & Connect Box
  • Water supply connection includes an integrated angle stop valve and hand wheel
  • Compatible with MasterFix and MeplaFix water supply connection systems
  • Supplied with WC connection set, 90° PE-HD connection bend and 90/110mm PE-HD adaptor socket
  • Supplied with two wall anchors, pull disc, fastening material and protection material
  • Supplied with R 1/2 inch water supply connection and integrated angle stop valve
  • Compatible Geberit Omega flush plate required; flush plate not confirmed as included
  • Images are for illustration purposes only
