Geberit Sigma01 Mains Powered Touchless Urinal Control - Gloss Chrome

In stock
SKU: 116.021.21.5
£600.00 inc. VAT
-30% £856.00 £600.00 inc. VAT

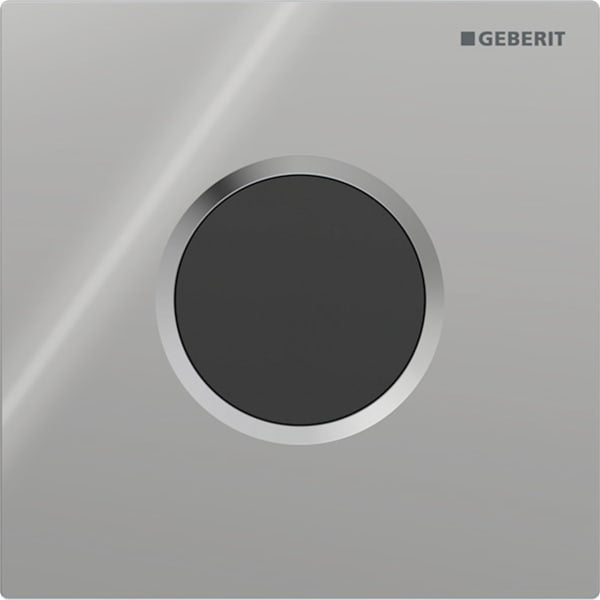

The Geberit Sigma01 Mains Powered Touchless Urinal Control in Gloss Chrome is a modern, wall-mounted flushing solution designed for automatic urinal operation in commercial and contemporary bathroom environments. Its square cover plate features a discreet, streamlined profile, while the round button design and gloss chrome finish create a coordinated, understated appearance. Manufactured from die-cast zinc, the cover plate is supplied with a securing bar for its installation arrangement. The touchless design uses infrared technology to detect users, helping provide convenient, hygienic flush activation without requiring direct contact. As part of the Geberit Sigma01 collection, this urinal control combines a refined appearance with configurable flushing functions for compatible Geberit urinal installations.

Designed for automatic flushing, this mains-powered control is suitable for Geberit urinal frames with front actuation and installation sets for Geberit urinal flush controls manufactured from 2009 onwards. Its self-adjusting infrared sensor features background fade-out, while adjustable flush duration, pre-flush settings, interval flushing and a water-saving hybrid mode support flexible operation. Settings can be managed through the Geberit Control App using the integrated Bluetooth interface, and the unit is compatible with Geberit Connect and supported gateway connections. The control includes power-failure protection and a valve-closing function, with a single flush after power is restored. Supplied components include the cover plate, mounting frame, pre-mounted infrared control, solenoid valve, power supply unit and fastening material. Images are for illustration purposes only.

PRODUCT SPECIFICATION
  • Product Type: Urinal Control
  • Brand: Geberit
  • Collection: Sigma01
  • Finish: Gloss Chrome

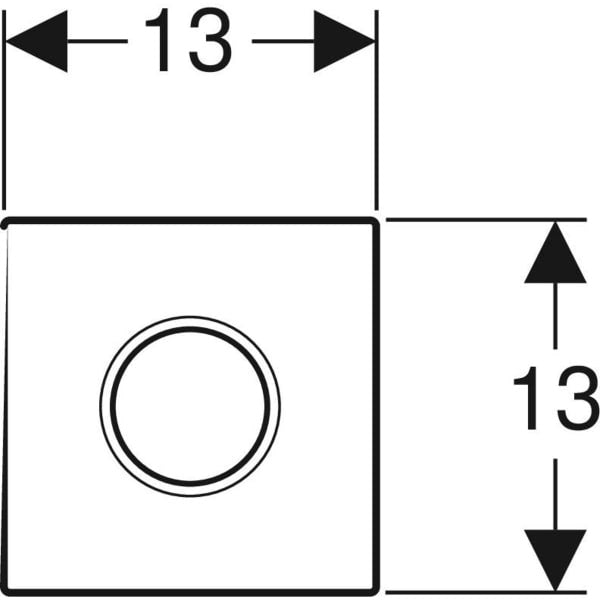

  • Height: 130mm
  • Width: 130mm

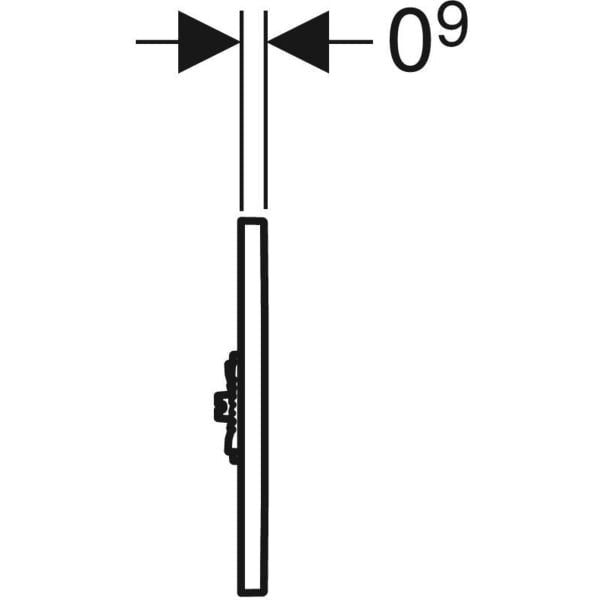

  • Depth: 9mm
  • Style: Modern
  • Shape: Square
  • Mounting: Wall
  • Material: Die-cast zinc
  • Guarantee: 1 Year
  • Flush Type: Single Flush
  • Degree of Protection: IP45
  • Nominal Voltage: 110–240 V AC
  • Mains Frequency: 50–60 Hz
  • Operating Voltage: 4.5 V DC
  • Flow Pressure: 1–8 bar
  • Minimum Flow Pressure: 1 bar
  • Water Test Pressure: Maximum 16 bar
  • Air / Inert Gas Test Pressure: Maximum 3 bar
  • Maximum Water Temperature: 30 °C
  • Flow Rate at 100 kPa / 1 bar Without Flow Limiter: 0.3 l/s
  • Flow Rate at 100 kPa / 1 bar With Flow Limiter: 0.18 l/s
  • Calculated Flow Rate: 0.23 l/s
  • Relative Humidity: ≤ 100%
  • Interval Flush Adjustment Range: 1–168 hours
  • Interval Flush Factory Setting: 24 hours
  • Interval Flush Time Adjustment Range: 3–180 seconds
  • Interval Flush Time Factory Setting: 5 seconds
  • Detection Time Adjustment Range: 3–15 seconds
  • Detection Time Factory Setting: 7 seconds
  • Flush Time Adjustment Range: 1–15 seconds
  • Flush Time Factory Setting: 7 seconds
  • Button Shape: Round
PRODUCT FEATURES
  • Automatic, touchless urinal flush actuation using a self-adjusting infrared sensor with background fade-out
  • Suitable for Geberit urinal frames with front actuation and compatible installation sets manufactured from 2009 onwards
  • Configurable water-saving hybrid mode, pre-flush and interval flushing
  • Flush duration can be adjusted
  • Can be switched to operation with a covered urinal
  • Integrated Bluetooth interface for settings and operation through a mobile device
  • Compatible with the Geberit Control App and Geberit Connect
  • Can connect to a Geberit gateway through a GEBUS converter or wirelessly via Bluetooth
  • Functions can be set and checked using the Geberit Service Handy
  • Flush actuation can be deactivated
  • Flush volume can be reduced to 0.5 litres per flush using the regulating screw of the installation set
  • Mains power supply with LED display and readiness for operation upon connection to the mains
  • Power-failure control with valve-closing function and one-time flush after power supply activation
  • Components in contact with drinking water are lead-free
  • Supplied with Type 01 cover plate, infrared window, mounting frame, pre-mounted infrared control, solenoid valve, power supply unit and fastening material
  • Designed for straightforward installation and use
  • Images are for illustration purposes only

Download the Technical PDF here.
