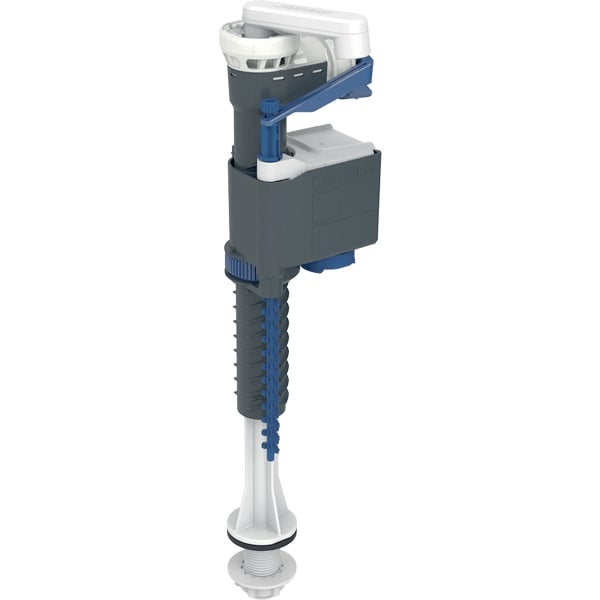

Geberit Type 323Ag Fill Valve, Bottom Water Supply Connection, 1/2", Nipple Made Of Plastic
Couldn't load pickup availability
The Geberit Type 323AG Fill Valve is a replacement cistern component designed for reliable water filling in compatible toilet flushing systems. Featuring a bottom water supply connection and a plastic threaded nipple, this fill valve is suitable for Geberit exposed cisterns, ceramic cisterns and Geberit low-height concealed cisterns. Its adjustable filling height allows the water level to be set to suit the installation. Designed for use with potable water, it can also accommodate greywater and rainwater within the specified pH range when a filter system is used. This practical plumbing component provides a suitable solution for cistern maintenance and replacement where the connection type and system compatibility match.
The Geberit Type 323AG Fill Valve operates within a defined pressure range and provides different flow rates according to the available water pressure. It incorporates Type AG backflow prevention, using a free outlet with overflow, and fulfils the requirements of BS 1212-4:2016 and WRAS Section 2075. The bottom-mounted water supply arrangement is intended for compatible cistern installations, while the adjustable filling height supports accurate setup during installation. Maximum water temperature and storage temperature limits should be observed to ensure the valve is used within its specified operating conditions. The fill valve is designed to be easy to install and use. Product images are for illustration purposes only.
PRODUCT SPECIFICATION
- Product Type: Fill Valve
- Brand: Geberit
- Model: Type 323AG
- Water Supply Connection: Bottom
- Connection Size: 1/2"
- Threaded Nipple Material: Plastic
- Flow Pressure: 0.1–10 bar
- Minimum Flow Pressure: 0.1 bar
- Flow Rate at 50 kPa / 0.5 bar: 0.06 l/s
- Flow Rate at 300 kPa / 3 bar: 0.17 l/s
- Maximum Water Temperature: 25°C
- Maximum Storage Temperature: 40°C
- Backflow Prevention: Type AG, free outlet with overflow
- Standards: BS 1212-4:2016 and WRAS Section 2075
- Suitable Greywater and Rainwater pH: 5.5–9.5 when used with a filter system
PRODUCT FEATURES
- Compatible with Geberit exposed cisterns, ceramic cisterns and Geberit low-height concealed cisterns
- Suitable for potable water

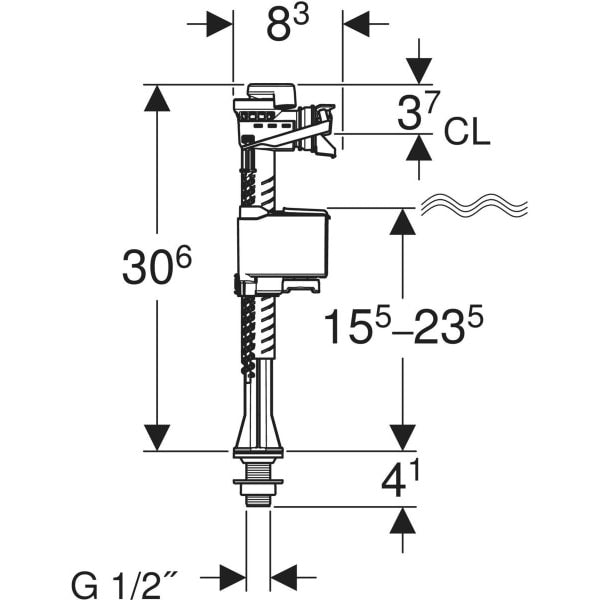

- Adjustable filling height
- Designed for greywater and rainwater use when a filter system is installed
- Easy to install and use
- Images are for illustration purposes only
