Geberit Type 380Ag Fill Valve, Bottom Water Supply Connection, 1/2", Nipple Made Of Plastic
Couldn't load pickup availability

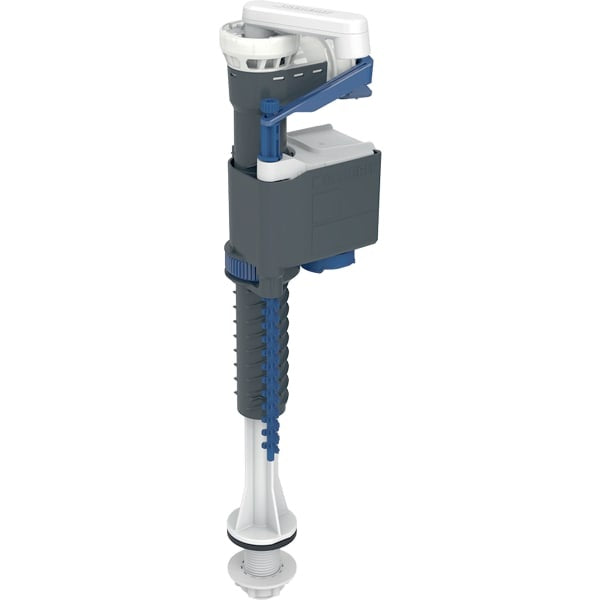

The Geberit Type 380AG Fill Valve is a replacement cistern component designed to provide reliable water filling for compatible toilet flushing systems. Part of the Geberit Duofix range, this fill valve features a bottom water supply connection with a plastic threaded nipple and a white and blue plastic construction. Its adjustable filling height makes it suitable for different cistern designs, including Geberit exposed cisterns, ceramic cisterns and low-height concealed cisterns. Designed for practical replacement and maintenance, it can also be used with compatible cisterns from other ceramic appliance manufacturers. Supplied in retail-ready packaging, this Geberit fill valve offers a convenient option for customer purchase and distribution.
The Geberit Type 380AG Fill Valve includes a delay-fill function, allowing the cistern to begin refilling only after the flush valve has closed, helping reduce unnecessary water consumption. This function can be activated or deactivated by removing the float and reattaching it with a quarter turn. The valve is suitable for potable water and can also be used with greywater or rainwater within the specified pH range when a filter system is installed. Its Type AG backflow prevention system incorporates a free outlet with overflow protection. The valve meets BS 1212-4:2016 and WRAS Section 2075 requirements and is designed for straightforward installation. Product images are for illustration purposes only.
PRODUCT SPECIFICATION
- Product Type: Fill Valve
- Brand: Geberit
- Range: Duofix
- Material: Plastic
- Colour: White and Blue
- Water Supply Connection: Bottom
- Connection Size: 1/2" (G 1/2")
- Threaded Nipple Material: Plastic

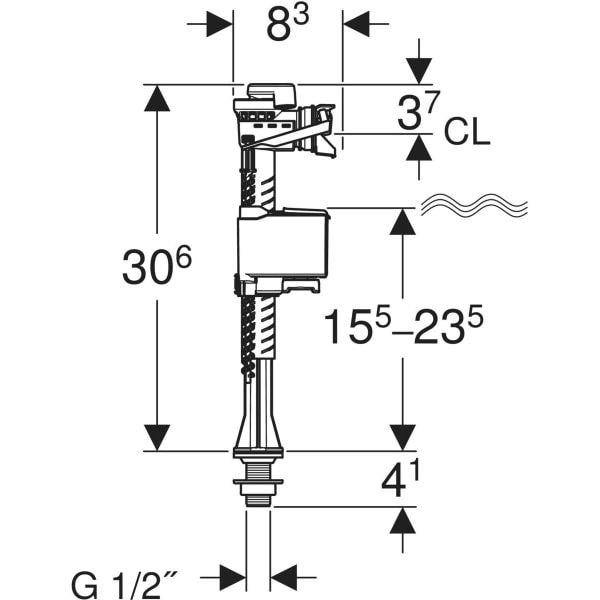

- Adjustable Filling Height: 155–235mm
- Overall Height: 306mm
- Flow Pressure: 0.1–10 bar
- Minimum Flow Pressure: 0.1 bar
- Flow Rate at 50 kPa / 0.5 bar: 0.06 l/s
- Flow Rate at 300 kPa / 3 bar: 0.17 l/s
- Maximum Water Temperature: 25°C
- Maximum Storage Temperature: 40°C
- Backflow Prevention: Type AG, free outlet with overflow
- Suitable Greywater and Rainwater pH: 5.5–9.5 with a filter system
- Standards: BS 1212-4:2016 and WRAS Section 2075
- Guarantee: 5 Years
PRODUCT FEATURES
- Delay-fill function helps reduce unnecessary water consumption
- Delay-fill function can be activated or deactivated by removing the float and reattaching it with a quarter turn
- Compatible with Geberit exposed cisterns, ceramic cisterns and Geberit low-height concealed cisterns
- Suitable for compatible cisterns from other ceramic appliance manufacturers
- Suitable for potable water
- Retail-ready packaging for point-of-sale display and convenient purchase
- Easy to install and use
- Images are for illustration purposes only
