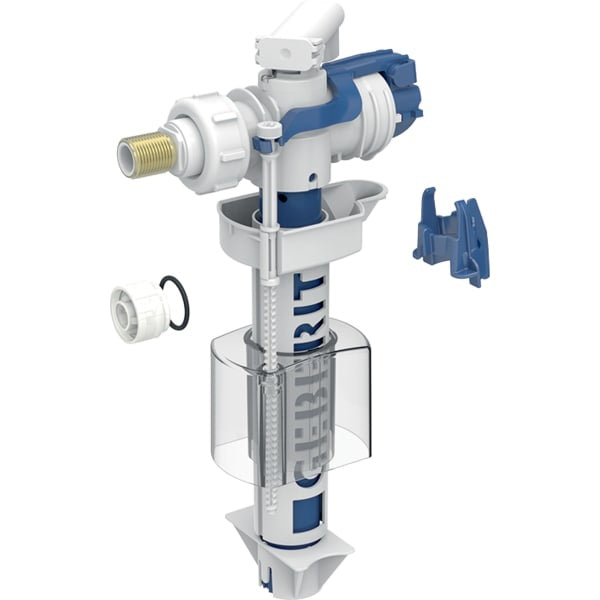

Geberit Type 380AG Fill Valve Brass Nipple Water Supply Connection 3/8"
Couldn't load pickup availability
The Geberit Type 380AG Fill Valve with Brass Nipple Water Supply Connection is designed to regulate water filling in compatible Geberit concealed cisterns and Monolith sanitary modules for WCs. Featuring a brass threaded nipple, this fill valve provides a water supply connection suitable for bathroom sanitary installations. Its adjustable filling height allows the water level to be set according to the requirements of the installation. The valve is designed for use with potable water and can also accommodate greywater and rainwater within the specified pH range when a filter system is used. With its practical configuration and compatibility with selected Geberit systems, it provides a replacement or installation component for suitable cistern applications.
The Geberit Type 380AG Fill Valve supports water supply connections from either the left or right, helping accommodate different installation arrangements. Its free outlet with overflow provides Type AG backflow prevention, and the valve fulfils the requirements of BS 1212-4:2016 and WRAS Section 2075. It operates within a flow pressure range suitable for compatible plumbing systems, with defined limits for storage and water temperatures. The supplied information also identifies an adapter for the nipple for use with a Type 350 fill valve. Designed to be easy to install and use, this Geberit component is intended for the specified cistern and sanitary module applications. Images are for illustration purposes only.
PRODUCT SPECIFICATION
- Product Type: Fill Valve
- Brand: Geberit
- Model: Type 380AG
- Water Supply Connection: 3/8" brass threaded nipple
- Flow Pressure: 0.1–10 bar
- Maximum Storage Temperature: 40 °C
- Maximum Water Temperature: 25 °C
- Suitable Greywater and Rainwater pH: 5.5–9.5 when a filter system is used
- Backflow Prevention: Type AG, free outlet with overflow
- Standards: BS 1212-4:2016 and WRAS Section 2075
PRODUCT FEATURES
- Suitable for Geberit Monolith sanitary modules for WCs and Geberit concealed cisterns
- Adjustable filling height
- Water supply connection can be positioned on the left or right
- Suitable for potable water
- Includes an adapter for the nipple for use with a Type 350 fill valve
- Easy to install and use
- Images are for illustration purposes only
