Geberit Universal Wall Hung Bidet Frame 980mm Height
Couldn't load pickup availability

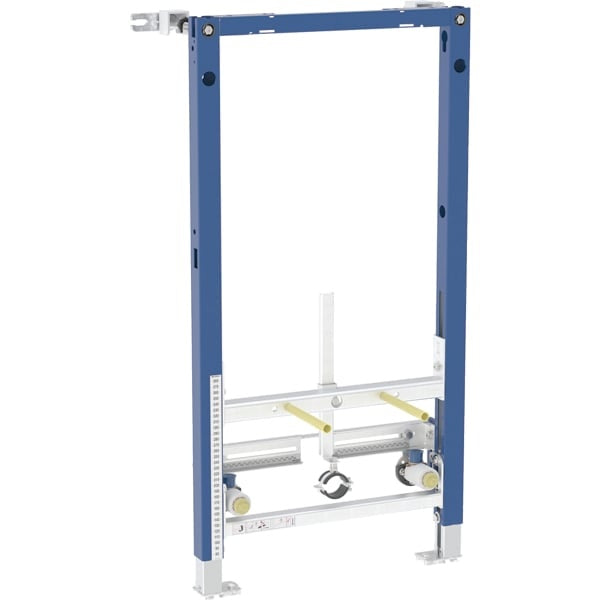

The Geberit Universal Wall Hung Bidet Frame is a concealed installation system designed to support wall-hung bidets with deck-mounted taps. Part of the Universal collection, this modern frame provides a practical solution for contemporary bathroom projects where the supporting structure remains hidden. Measuring 980mm high, 500mm wide and 48mm deep, it features a statically self-supporting steel construction with a durable powder-coated finish to help resist corrosion. Galvanised feet provide additional protection and stable support. Designed for flexible installation across different wall constructions, this Geberit bidet frame combines a compact profile with an adjustable support system, making it suitable for professional bathroom installations and renovation projects.
The frame accommodates metal and timber stud walls, part-height pre-walls, Geberit Duofix system walls and floor constructions with a building height of 0–25cm. Height-adjustable bidet fastenings and a connection bend help simplify positioning, while the tap attachments can be adjusted in height and width. Rotating foot plates are suitable for UW 50 and UW 75 profiles and can be fitted to Geberit Duofix system rails without tools or additional components. Sound-insulating bases and sleeves help reduce sound transmission. Supplied installation accessories include wall anchors, angle stop valves, elbow tap connectors, sealing washers and mounting and protection materials. A one-time-use plug is provided for cold-water pressure testing. Images are for illustration purposes only.
PRODUCT SPECIFICATION
- Product Type: Bidet Frame
- Brand: Geberit
- Collection: Universal

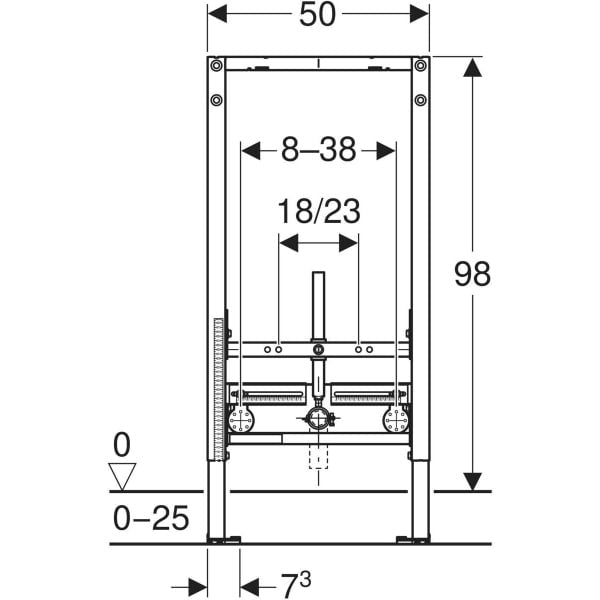

- Height: 980mm
- Width: 500mm
- Depth: 48mm
- Style: Modern
- Shape: Rectangular
- Mounting: Concealed
- Material: Powder-Coated Steel, Galvanised Feet
- Guarantee: 10 Years
- Bidet Fastening Distance: 18cm or 23cm
- Maximum Test Pressure: 15 bar / 1500kPa
PRODUCT FEATURES
- Designed for wall-hung bidets with deck-mounted taps
- Suitable for metal and timber stud walls, part-height pre-walls and Geberit Duofix system walls
- Suitable for floor constructions with a building height of 0–25cm
- Height-adjustable bidet fastening and connection bend with sound-insulating properties
- Tap attachments adjustable in height and width
- Alternative fastening point for wall anchors
- Rotating foot plates suitable for UW 50 and UW 75 profiles
- Foot plates can be mounted on Geberit Duofix system rails without tools or additional components
- Galvanised, non-slip leg supports
- Includes 2 wall anchors, 2 angle stop valves (½"), 2 elbow tap connectors (Rp ½" / R ½"), 2 sealing washers, 2 sound-insulation bases, 2 insulating sleeves, mounting and protection material, a self-adhesive fleece-laminated sealing washer and a one-time-use protection plug
- Protection plug suitable for one-time cold-water pressure testing up to 15 bar / 1500kPa
- Images are for illustration purposes only
