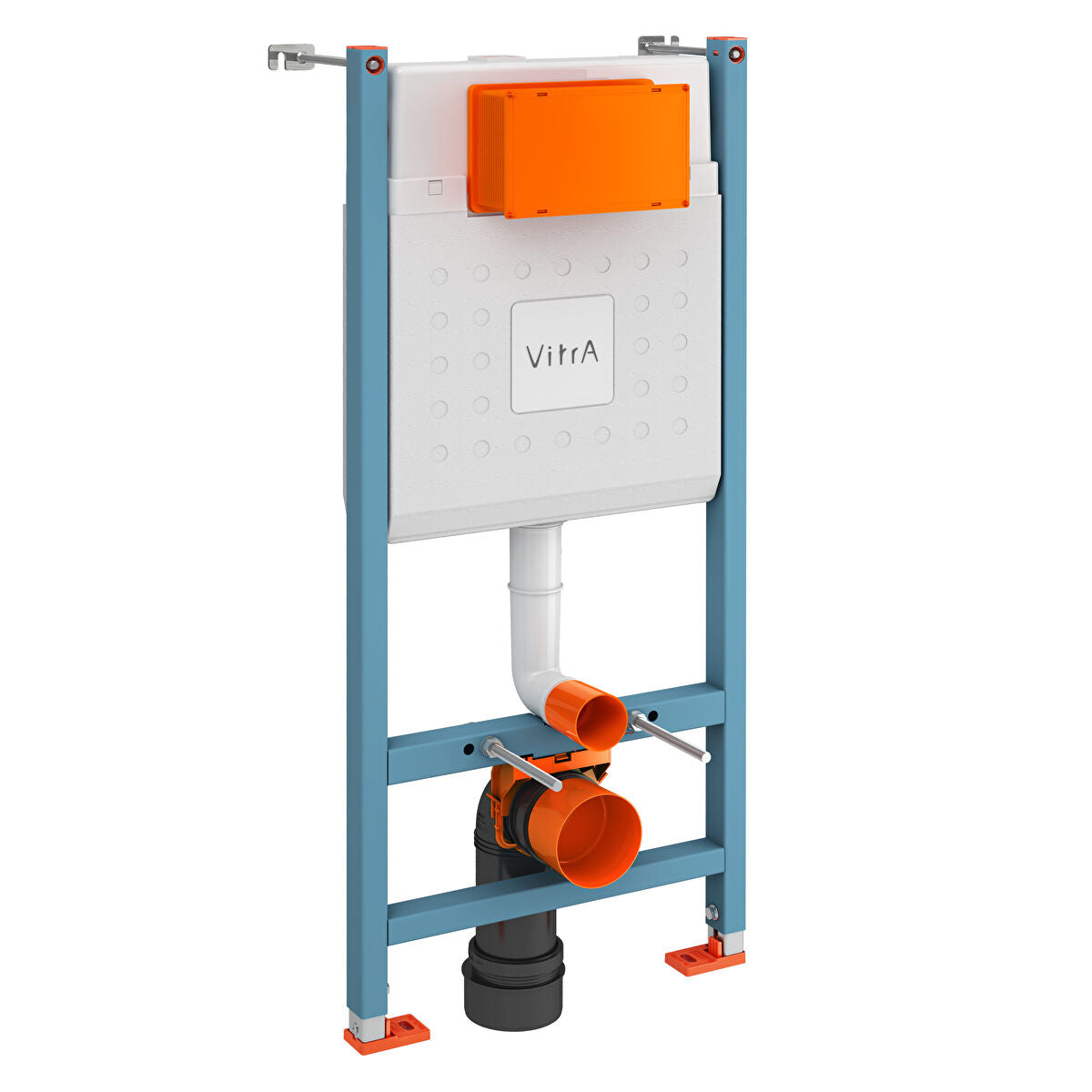

Vitra V-Fix Core Wall Hung Toilet Frame With Concealed Cistern - 1120mm x 480mm

In stock
SKU: 732-5805-01
£162.00 inc. VAT
-45% £293.00 £162.00 inc. VAT

This toilet frame from Vitra V Fix collection is designed to provide a strong and reliable concealed installation solution for modern bathrooms. Made from high quality metal material it ensures long lasting durability and structural stability. The rectangular frame with slim depth allows it to fit neatly inside wall systems while maintaining a clean and minimal bathroom appearance. Its wall mounted design supports efficient space saving installations in residential and commercial projects.

The frame features dual flush adjustment with large and small flush volume ranges that help improve water efficiency. It is WRAS approved and suitable for drywall applications ensuring compliance with installation standards. With top water inlet design and both floor and wall fixation options it offers flexible installation. The load bearing capacity and self supporting structure ensure high stability and reliable performance even under heavy usage conditions.

This product is part of a variable range where variations may include differences in flush plate compatibility or installation configurations depending on bathroom layout. It comes with a 10 year guarantee ensuring long term durability and performance. The modern concealed design combined with strong structural support and sound insulation compliance makes it suitable for residential and commercial bathroom spaces. It is a dependable solution for advanced wall hung toilet systems.

PRODUCT SPECIFICATION
  • Product Type: Toilet Frame
  • Brand: Vitra
  • Collection: V-Fix
  • Height: 1120mm
  • Width: 480mm
  • Depth: 130mm
  • Style: Modern
  • Shape: Rectangular
  • Mounting: Wall
  • Material: Metal
  • Guarantee: 10 Years
  • Min Pressure: 0.5 Bar
  • Max Pressure: 10 Bar
PRODUCT FEATURES
  • Water Inlet Detail (REZ ICTKM): Top
  • Large Flush Volume, Adjustable Range: 6
  • Small Flush Volume, Adjustible Range: 3
  • Drywall Application
  • WRAS approved product
  • Floor & Wall fixation
  • Load Bearing Capacity: 500
  • Statically Self-Supporting and Durable up to 400 kg
  • Complies with Sound Insulation Standards
  • Flush Plate sold separately
  • Images are shown for illustration purposes only

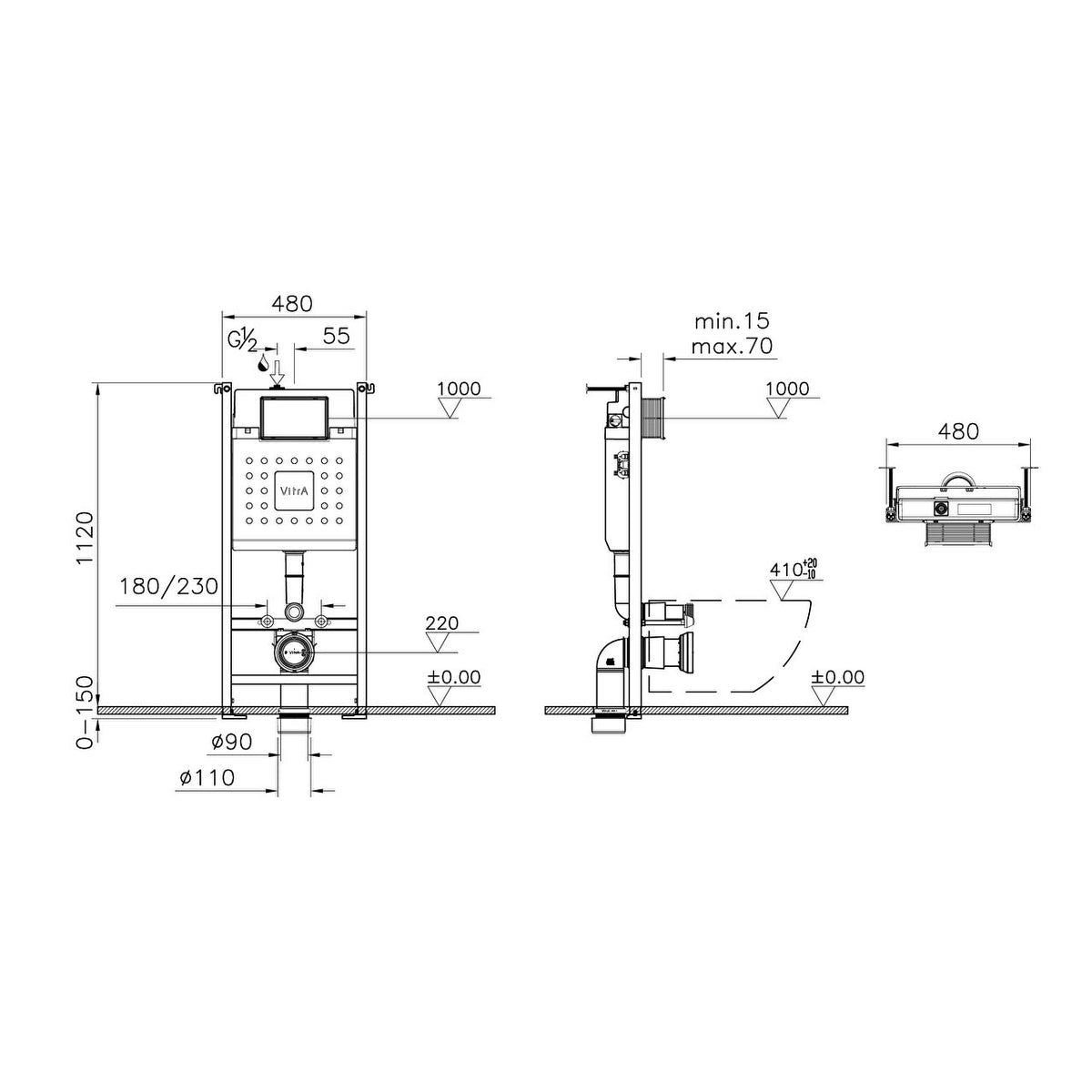

Download the Technical PDF here.
